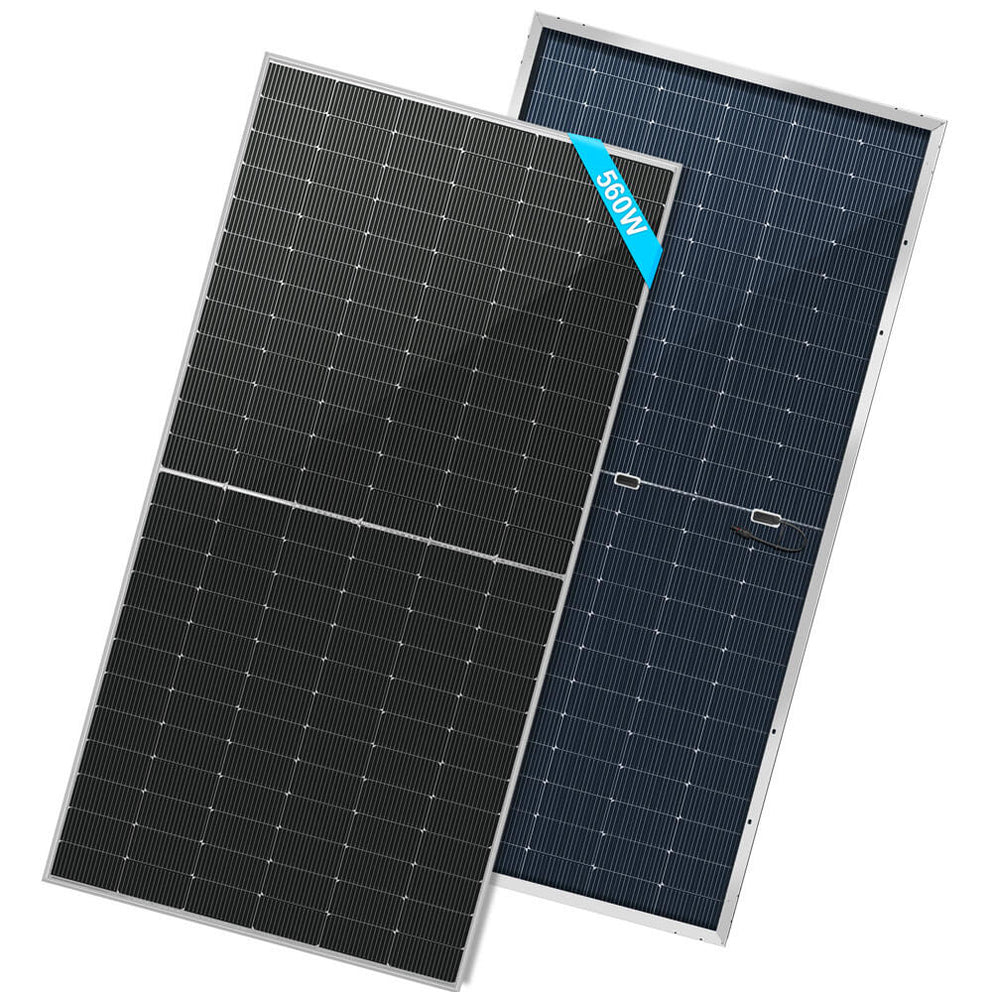

N Type Solar Panels — Authentic 560W Bifacial Monocrystalline High Efficiency
The n type solar panels 560W Bifacial model SG-560WBG represents the premium tier of monocrystalline solar panel technology — combining N-Type cell construction with bifacial light capture capability for maximum energy generation from a single panel installation. At 560W peak power with 144 cells and a maximum system voltage of 1500V — these panels deliver industry-leading efficiency for residential commercial and off-grid applications. CE and TUV certified with a 25-year 80% output performance warranty.
Table of Contents
- Product Details
- What Are N-Type Solar Panels
- Bifacial Technology
- Performance And Warranty
- Monocrystalline vs Polycrystalline
- Technical Specifications
- FAQ
Product Details
| Specification | Value |
|---|---|
| Model | SG-560WBG |
| Peak Power | 560W |
| Tolerance | ±3% |
| Max Power Current | 13.3A |
| Max Power Voltage | 42.1V |
| Short Circuit Current | 14.09A |
| Open Circuit Voltage | 50.09V |
| Max System Voltage | 1500V |

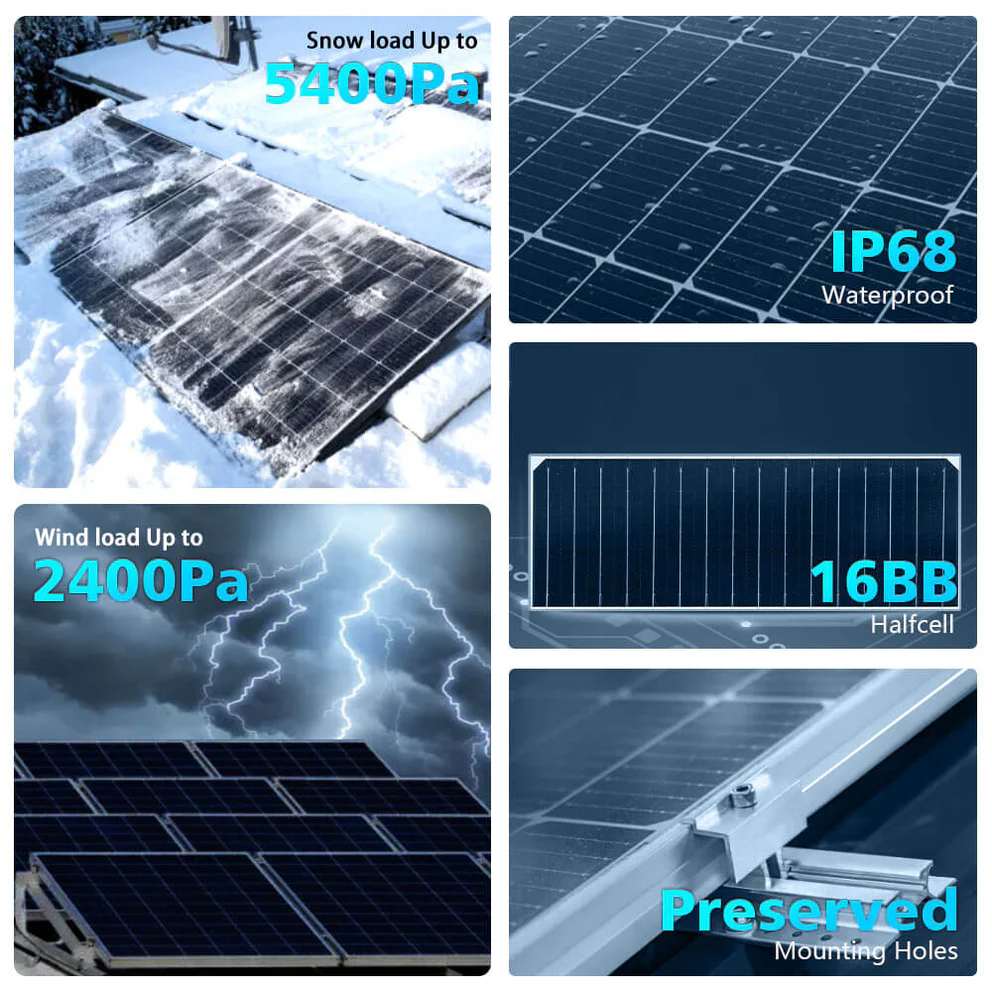

| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG 1ft per cable |
| Number of Cells | 144 — 6×24 — 60 in series |
| Cell Type | N-Type |
| Certifications | CE TUV |
| Product Weight | 70.4 lbs |

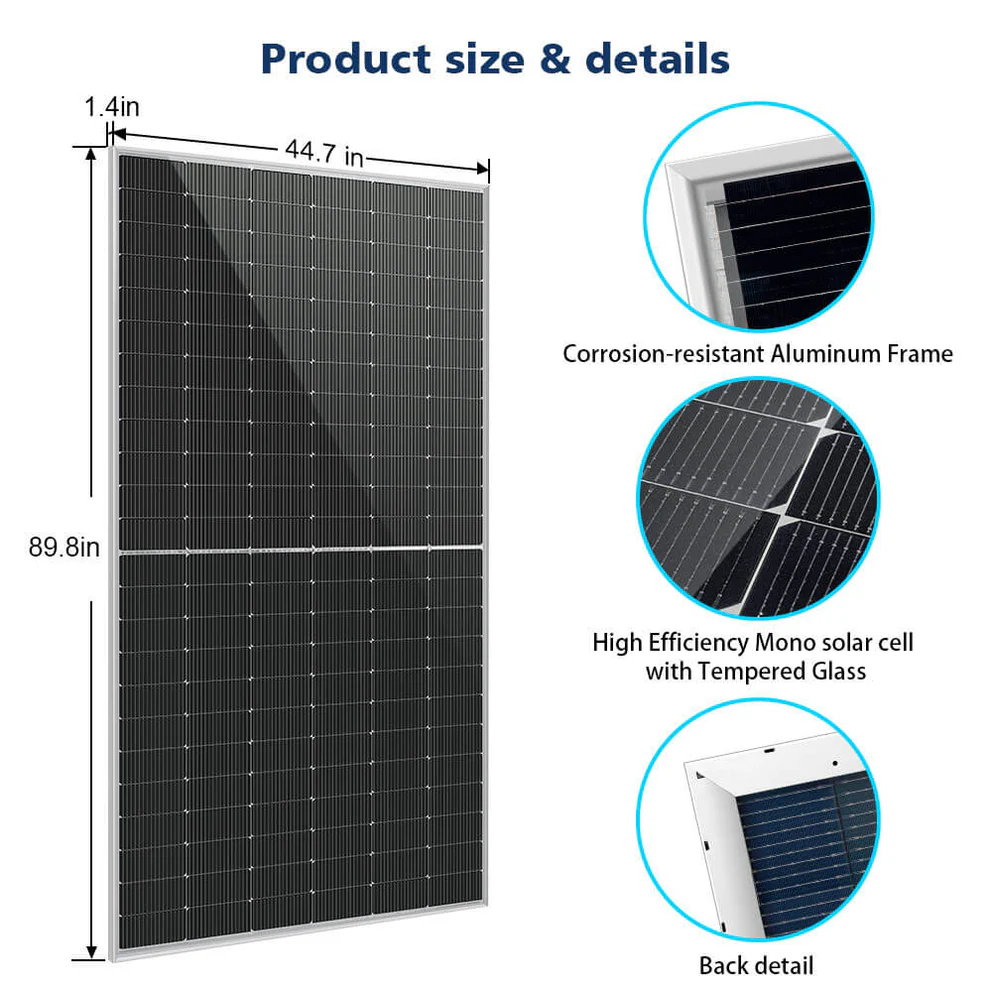

| Product Dimensions | 89.8 x 44.7 x 1.4 inch |
| Package Weight | 128.7 lbs — 2PCS |
| Package Dimensions | 92.5 x 47.6 x 3.1 inch — 2PCS |
What Are N-Type Solar Panels
The solar panels n type classification refers to the specific semiconductor doping process used in the silicon cells — N-Type cells use phosphorus doping rather than the boron doping found in conventional P-Type cells. This difference in construction delivers several measurable performance advantages that position N-Type technology as the premium choice for high-efficiency solar installations.
What is an n type solar panel in practical terms? It is a solar cell with superior resistance to light-induced degradation — the primary cause of efficiency loss in conventional solar panels over time — alongside a higher base efficiency rating and better performance in low-light and high-temperature conditions compared to standard P-Type monocrystalline alternatives.

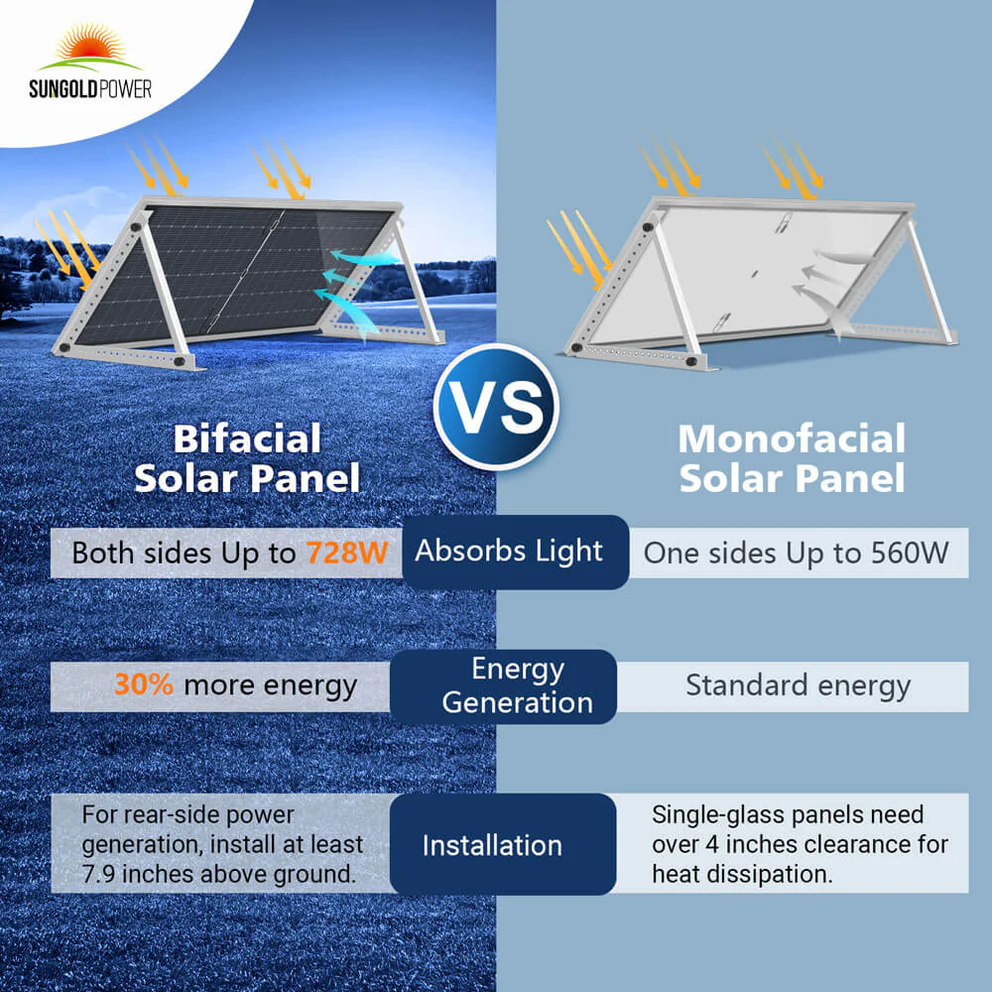

Bifacial Technology
The bifacial design of this panel captures sunlight from both the front and rear surfaces — the rear surface generating additional power from reflected ambient light off the ground or surrounding surfaces. This dual-surface capture capability increases total energy yield per panel compared to conventional single-face panels under the same installation conditions — making bifacial technology particularly valuable for ground-mount commercial and utility-scale installations where rear surface light exposure is maximised.
Performance And Warranty
| Warranty Period | Output Guarantee |
|---|---|
| 5 Years | 95% output |
| 10 Years | 90% output |
| 25 Years | 80% output |
| Material and Workmanship | 12 years |
How long do solar panels last with this warranty structure? The 25-year performance guarantee confirms that these monocrystalline solar panels for sale are engineered to maintain at least 80% of their rated output capacity for a minimum of 25 years — one of the most robust performance commitments available in the current solar panel market.
Monocrystalline vs Polycrystalline
When evaluating monocrystalline vs polycrystalline solar pv panels for a premium installation — the N-Type monocrystalline technology in this panel consistently outperforms polycrystalline alternatives across every key metric — higher base efficiency lower degradation rate better low-light performance and superior temperature coefficient — making it the clear choice for installations where maximum long-term energy yield per square metre is the priority.
Browse our full N-Type Solar Panels and Bifacial Solar Panels collections for more premium options.
Technical Specifications
| Detail | Value |
|---|---|
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG |
| Certifications | CE TUV |
Frequently Asked Questions
Q: What are n type solar panels? N type solar panels use phosphorus-doped N-Type silicon cells — delivering higher efficiency lower light-induced degradation and better performance in low-light and high-temperature conditions compared to conventional P-Type monocrystalline alternatives — making them the premium choice for high-efficiency solar installations.
Q: What is an n type solar panel advantage over P-Type? What is an n type solar panel advantage — N-Type cells resist light-induced degradation more effectively than P-Type cells — maintaining higher efficiency over their operational lifetime — combined with superior low-light performance and a better temperature coefficient for sustained output in variable conditions.
Q: What are solar panels n type bifacial? Solar panels n type bifacial combine N-Type cell efficiency with dual-surface light capture — the front surface capturing direct sunlight and the rear surface capturing reflected ambient light — increasing total energy yield per panel compared to conventional single-face N-Type panels.
Q: How long do solar panels last with this warranty? How long do solar panels last — this model guarantees 95% output for 5 years 90% for 10 years and 80% for 25 years — with a 12-year material and workmanship warranty — one of the most comprehensive performance commitments available in the monocrystalline solar panel market.
Q: Monocrystalline vs polycrystalline solar pv panels — which is better? Monocrystalline vs polycrystalline solar pv panels comparison consistently favours monocrystalline N-Type technology — higher efficiency lower degradation better temperature performance and superior long-term yield per square metre make monocrystalline the premium choice for serious solar installations.
| Quantity | 10PCS, 12PCS, 14PCS, 16PCS, 18PCS, 20PCS, 2PCS, 4PCS, 6PCS, 8PCS |
|---|
