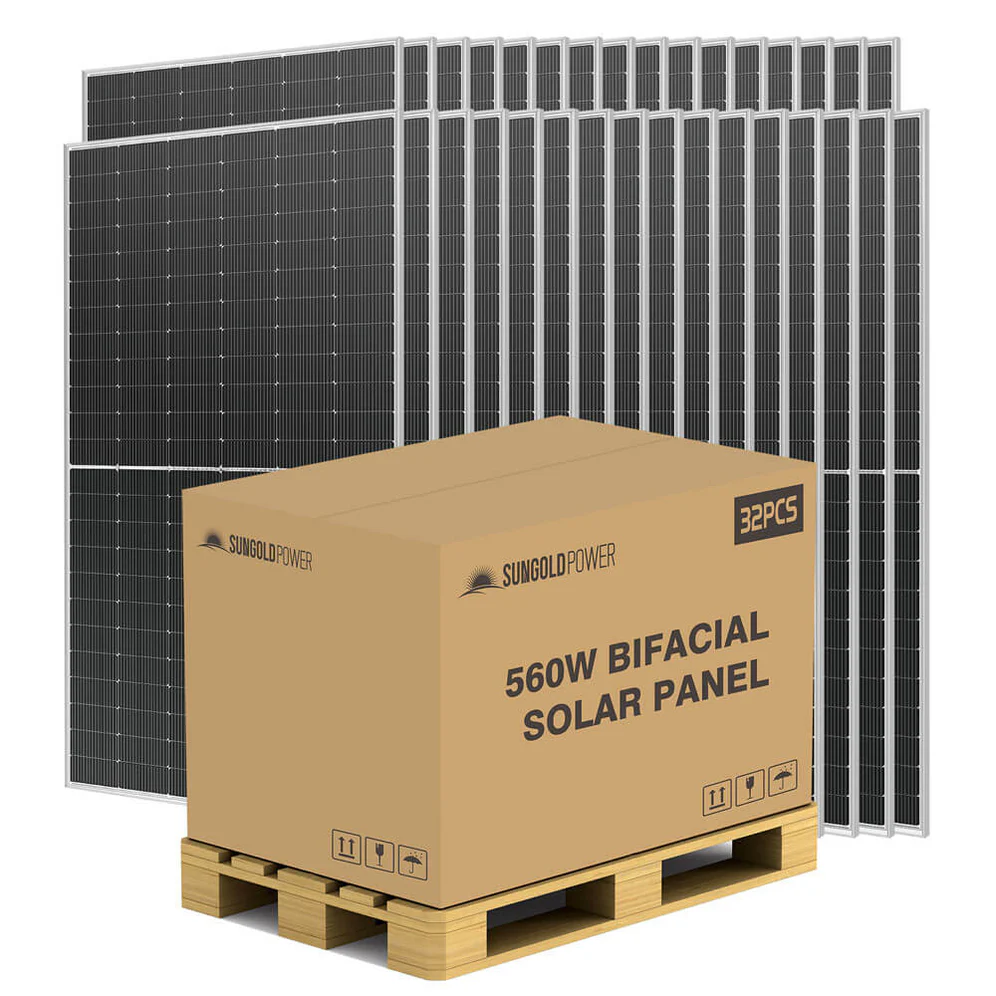

Solar Panel Pallet — 560W Bifacial N-Type 32 Units SG-560WBG
This solar panel pallet delivers 32 units of the SG-560WBG — Sungold’s 560W Bifacial N-Type monocrystalline panel — in a single freight shipment totalling 17,920 watts of peak capacity. N-Type bifacial technology represents the current leading edge of mainstream commercial solar cell architecture, combining the superior low-light and high-temperature performance of N-Type silicon with the dual-face energy capture of bifacial design. For installers, developers and commercial solar panel buyers seeking the highest-performing solar panels pallet format currently available, the SG-560WBG is the specification to buy.
Table of Contents
- Product Specifications
- N-Type Bifacial Technology Explained
- Bifacial Gain — Rear Surface Performance
- Electrical Performance
- Certifications and Compliance
- Warranty Coverage
- Pallet Shipping Details
- FAQ
Product Specifications
| Parameter | Detail |
|---|---|
| Model | SG-560WBG |
| Peak Power (Pmax) | 560W |
| Production Tolerance | ±3% |
| Cell Type | N-Type Monocrystalline |
| Number of Cells | 144 (6×24), 60 cells in series |
| Product Weight | 70.4 lbs |

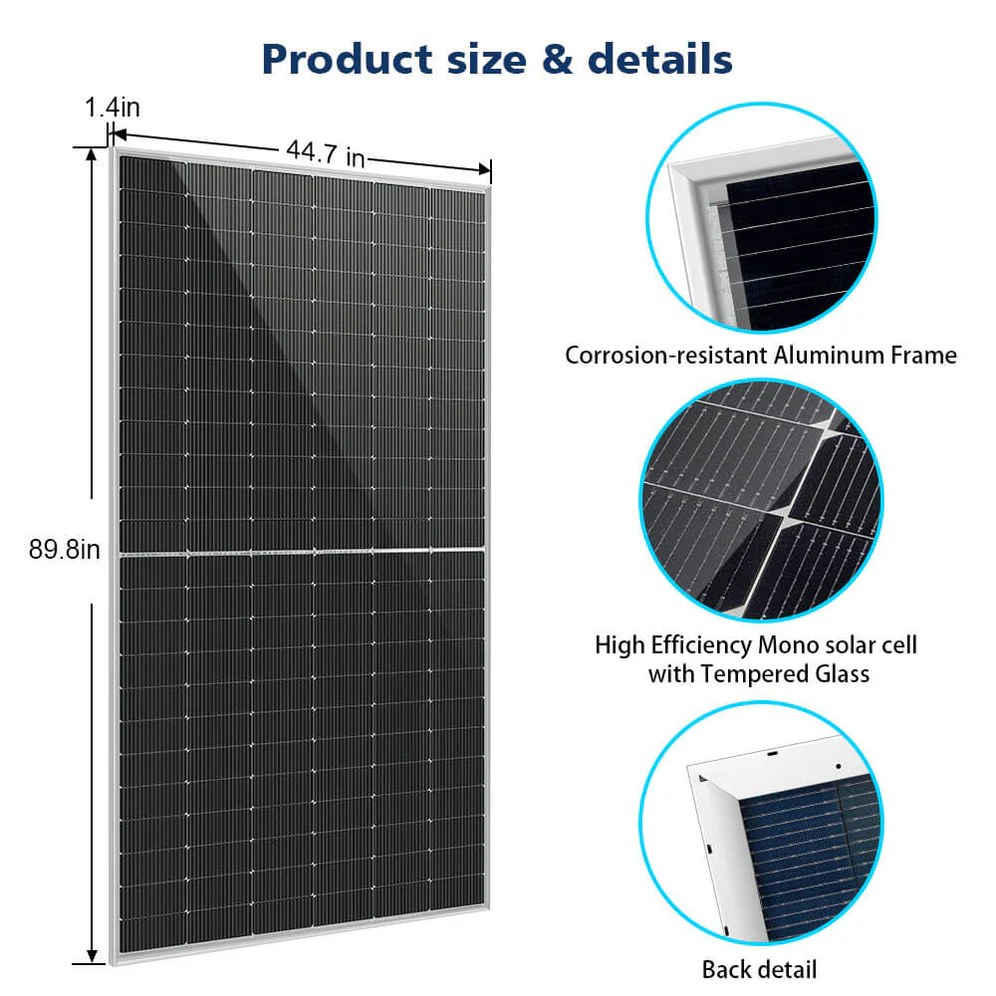

| Dimensions | 89.8 × 44.7 × 1.4 inch |
| Output Cables | 12 AWG (1ft per cable) |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Certifications | CE, TUV |
| Pallet Qty | 32 panels |
| Package Weight | 2,440 lbs (32 pcs) |
| Package Dimensions | 92.9 × 48.0 × 61.8 inch (32 pcs) |
N-Type Bifacial Technology Explained
The designation “N-Type” distinguishes this cell architecture from the P-Type silicon that underpins the majority of PERC monocrystalline panels currently in the market. The distinction is at the atomic level — N-Type silicon is doped with phosphorus rather than boron, producing a different electron carrier profile with meaningful performance advantages.
N-Type cells exhibit lower light-induced degradation (LID) than P-Type cells — meaning they lose less output during the initial exposure weeks after installation and maintain higher performance over the system lifetime. N-Type cells also demonstrate better temperature coefficients — retaining more of their rated output at elevated operating temperatures — and superior performance under low-irradiance conditions including morning, evening and overcast hours.
For wholesale solar panels purchased at pallet scale for commercial or high-performance residential projects, N-Type architecture delivers a meaningfully better energy yield over the system lifetime compared to equivalent-wattage P-Type PERC panels — a yield advantage that compounds across the 25-year warranty period.
Bifacial Gain — Rear Surface Performance

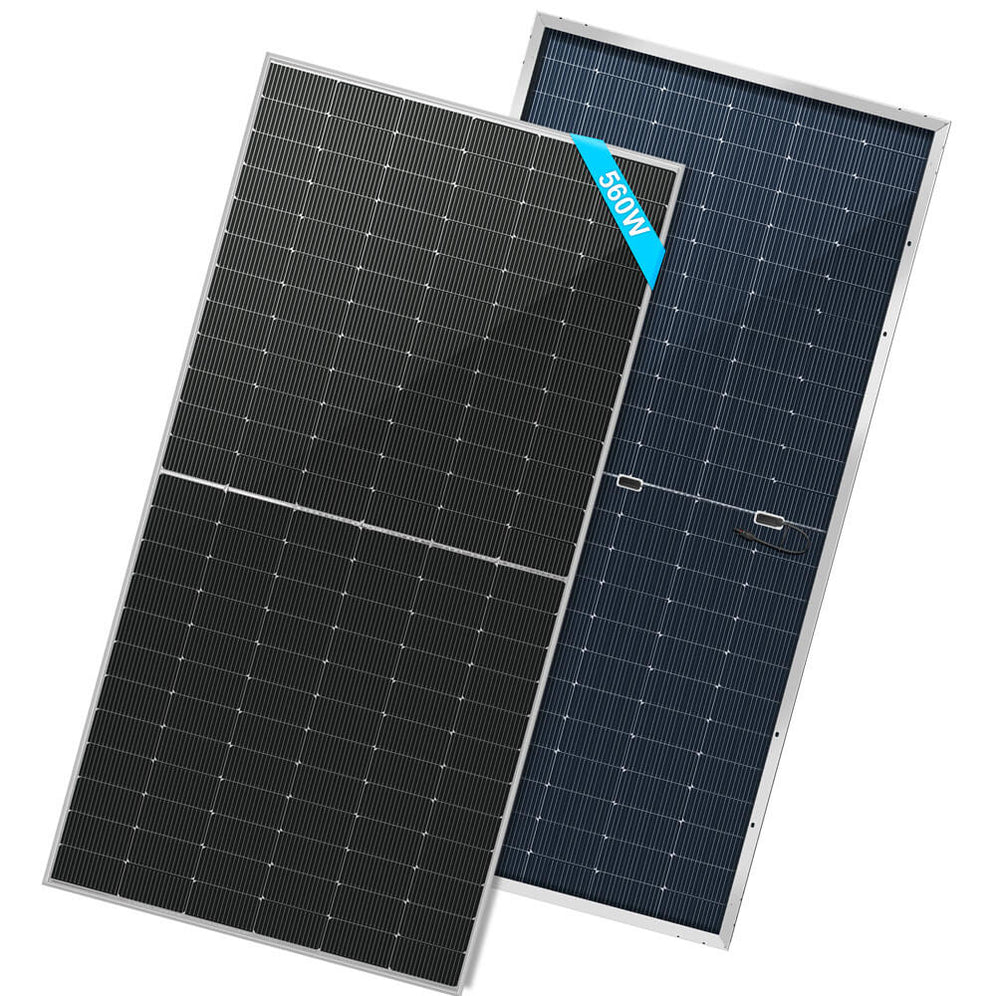

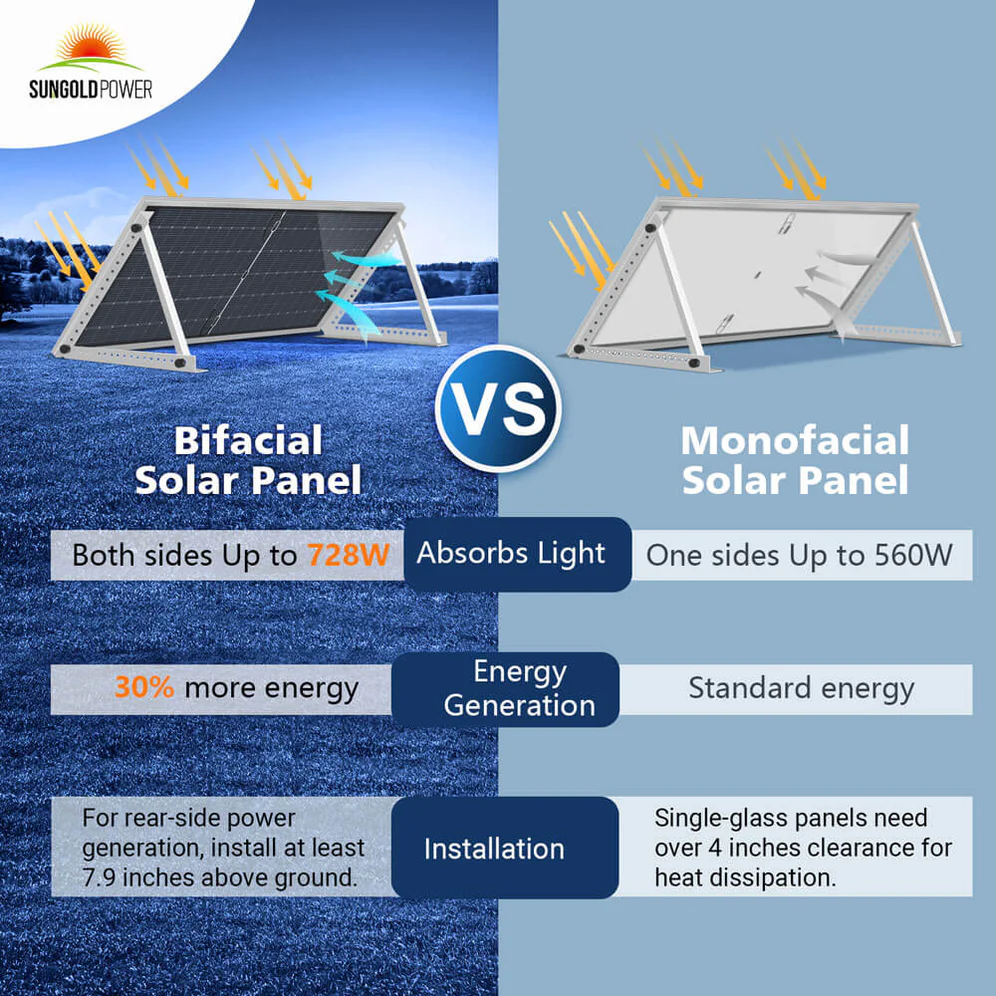

The “bifacial” designation means the SG-560WBG captures solar energy from both the front and rear faces of the panel. While the front face receives direct irradiance, the rear face captures reflected light from the ground surface beneath the panel — an additional energy input that requires no additional panel area or mounting hardware.
Bifacial gain — the additional output from rear-surface energy capture — depends on the albedo (reflectivity) of the ground surface beneath the installation. Ground-mounted systems over light-coloured gravel, concrete or white membranes can achieve bifacial gains of 10–25% above rated front-face output. Rooftop installations over reflective membranes also benefit meaningfully. Even in lower-albedo environments, bifacial panels from this solar panels by pallet format deliver consistently superior energy yield compared to monofacial alternatives.
Electrical Performance
| Parameter | Value |
|---|---|
| Maximum Power Current (Imp) | 13.3A |
| Maximum Power Voltage (Vmp) | 42.1V |
| Short Circuit Current (Isc) | 14.09A |
| Open Circuit Voltage (Voc) | 50.09V |
| Maximum System Voltage | 1500V |
The 1500V maximum system voltage rating supports long string configurations for reduced balance-of-system costs. At 50.09V open circuit voltage, this panel is compatible with standard residential and commercial string inverters designed for 1500V system architectures.
Certifications and Compliance
The SG-560WBG carries CE and TUV certifications — confirming independent third-party verification of electrical safety and performance claims. For solar panel wholesale purchases at pallet scale, TUV certification in particular is widely recognised by engineering procurement and construction (EPC) contractors, utilities and insurers as a rigorous independent quality standard.

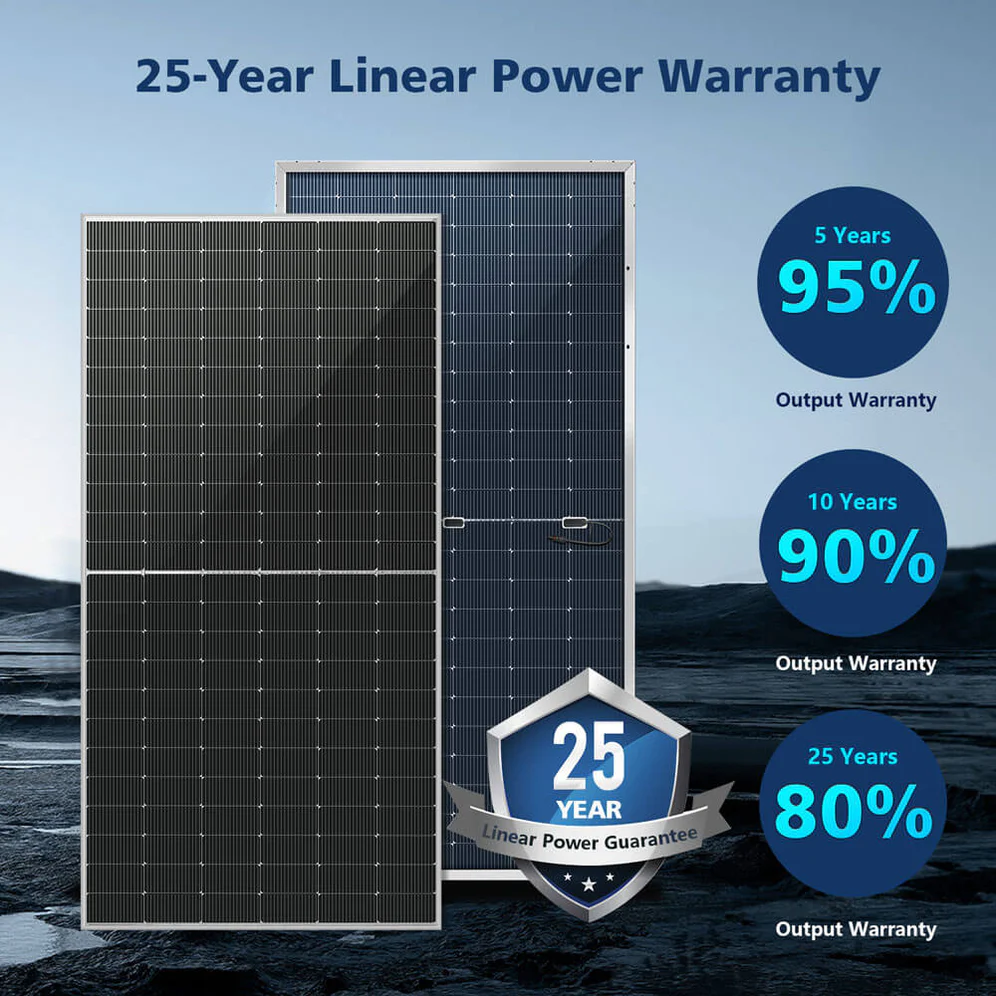

Warranty Coverage
| Period | Output Guarantee |
|---|---|
| 5 years | 95% of rated output |
| 10 years | 90% of rated output |
| 25 years | 80% of rated output |
| 12 years | Material and workmanship |
Pallet Shipping Details
| Parameter | Detail |
|---|---|
| Panels per Pallet | 32 |
| Total Pallet Weight | 2,440 lbs |
| Pallet Dimensions | 92.9 × 48.0 × 61.8 inch |
| Total System Output | 17,920W (17.92kW) |
At 70.4 lbs per panel and 2,440 lbs per full pallet of solar panels, LTL freight delivery with appropriate offloading equipment is required. Confirm site access and offloading capability before ordering.
Explore additional premium solar panel options in our Solar Panels, Bifacial Solar Panels and Wholesale Pallets categories.
FAQ
What makes this solar panel pallet N-Type bifacial? N-Type refers to the silicon cell architecture — doped with phosphorus rather than boron, producing lower light-induced degradation, better temperature coefficients and improved low-light performance compared to P-Type PERC cells. Bifacial refers to the dual-face energy capture design — the panel generates output from both front direct irradiance and rear reflected light. Combined in the SG-560WBG, these technologies produce a premium-performing solar cell for sale at pallet pricing.
How much total output does this solar panels pallet produce? This solar panels pallet of 32 SG-560WBG panels produces 17,920W (17.92kW) of peak output capacity. Actual energy production depends on local solar irradiance, installation angle, shading and the additional bifacial rear-face gain achievable at your specific installation site and ground surface albedo.
What is bifacial gain and how does it affect energy yield? Bifacial gain is the additional energy output from the rear face of a bifacial panel capturing reflected irradiance from the ground surface. Depending on the albedo of the installation surface and the mounting height, bifacial gain typically adds 5–25% above the panel’s rated front-face output — producing a higher total annual energy yield per installed watt than equivalent monofacial panels.
Are these bulk solar panels suitable for commercial projects? Yes — the SG-560WBG in this bulk solar panels pallet format is a commercial-grade product. N-Type bifacial architecture, 1500V system voltage compatibility, CE and TUV certification, and 25-year warranty terms all meet the specification requirements of commercial EPC contractors, utility-scale developers and institutional procurement processes.
What is the per-panel price on this solar panel pallet? Purchasing at full pallet scale — 32 panels — provides access to wholesale solar panel pricing that significantly reduces the per-panel cost compared to individual unit purchases. The pallet price shown above divided by 32 panels gives the effective per-panel rate for this shipment.
