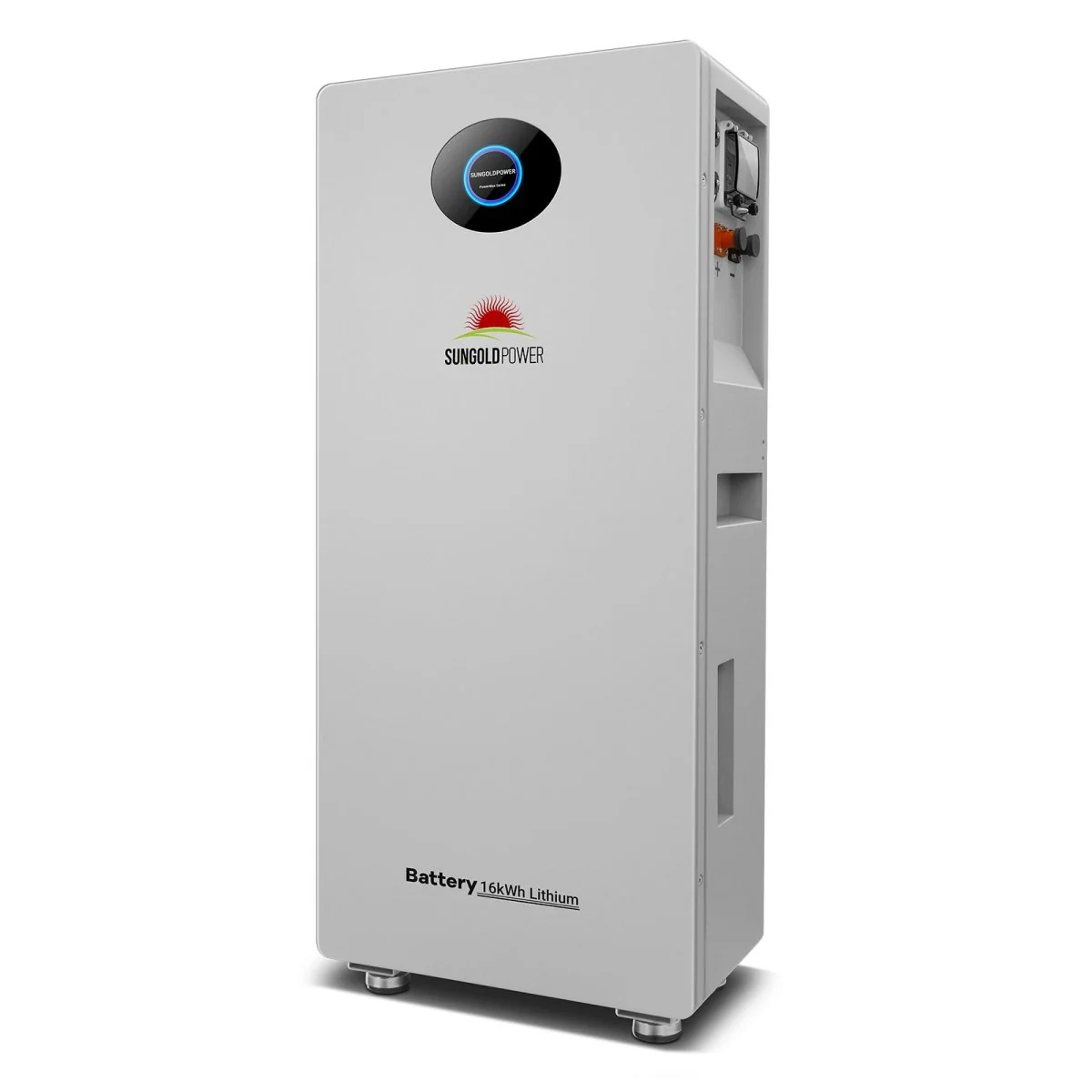

PowerMax 51.2V 314Ah Outdoor Energy Storage Battery — UL1973 / UL9540A / CEC Listed

48 Volt Battery 314Ah Outdoor — Authentic PowerMax [CEC + IP65]

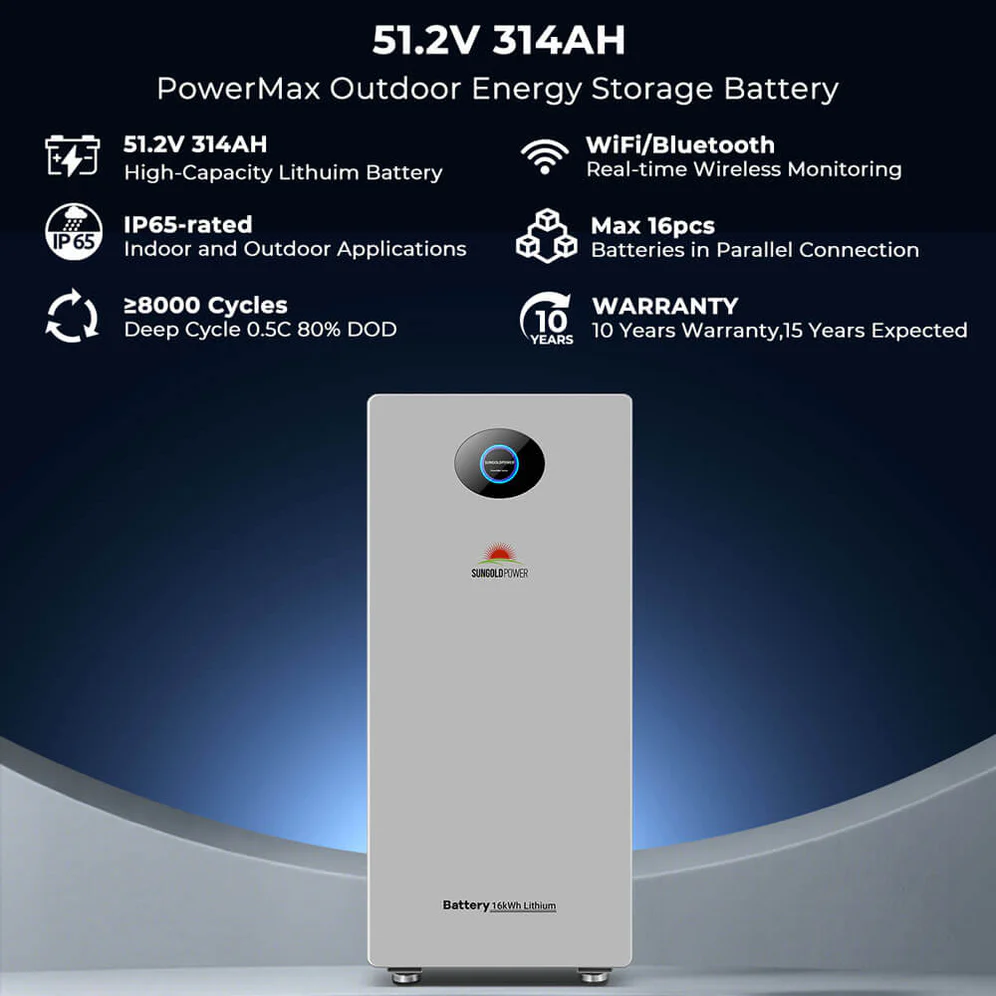

The 48 volt battery that goes where indoor-only units cannot — the PowerMax 51.2V 314Ah is an outdoor-rated energy storage battery with 16.07kWh of LiFePO4 (Lithium Iron Phosphate) capacity, certified to UL1973, UL9540A and CEC Listed, housed in a weatherproof enclosure designed for permanent outdoor installation without additional protective housing. At 314Ah, this is the highest-capacity single-unit battery in the Sungold range — delivering more than three times the energy of a 100Ah unit in a format optimised for outside-the-home installation where space constraints and weather exposure make indoor-rated batteries impractical.

Table of Contents

1. 16.07kWh — The Highest Single-Unit Capacity in the Range
2. Outdoor-Rated Enclosure — Installing Beyond the Utility Room
3. CEC Listing — The California Standard for Residential Storage
4. UL1973 and UL9540A — Dual Safety Certification
5. 48V LiFePO4 Energy Storage Architecture
6. Applications for Large-Capacity Outdoor Storage
7. FAQ

16.07kWh — The Highest Single-Unit Capacity in the Range

At 314Ah and 16.07kWh, the PowerMax is the largest single-unit battery in the Sungold storage range — delivering more total energy from one unit than three SG48100P server rack batteries combined (3 × 5.12kWh = 15.36kWh). For installations where total capacity is the primary requirement and installation simplicity — fewer units, fewer connections, fewer cable runs — is a priority, the PowerMax 314Ah addresses both simultaneously.

The 16.07kWh capacity at 80% usable depth of discharge provides approximately 12.86kWh of usable energy — sufficient to cover the overnight load of a large residential property consuming 10–12kWh overnight while retaining a meaningful reserve margin at sunrise. For large 48v batteries installations that might otherwise require three or four 100Ah units in parallel, a single PowerMax unit delivers equivalent or higher capacity from a single installation point.

Outdoor-Rated Enclosure — Installing Beyond the Utility Room

Indoor-only batteries — IP20 or unrated enclosures — require installation in a protected, climate-controlled interior space: utility room, mechanical room, garage or basement. Properties without adequate interior space for battery installation, or where the battery bank is best located adjacent to the solar array rather than within the home, cannot use indoor-only batteries.

The PowerMax outdoor-rated enclosure resolves this constraint. Installation options that are unavailable with indoor-rated units become practical:

• Adjacent to an outdoor ground-mount solar array: Minimising the DC cable run between panels and storage reduces wiring losses and installation cost.

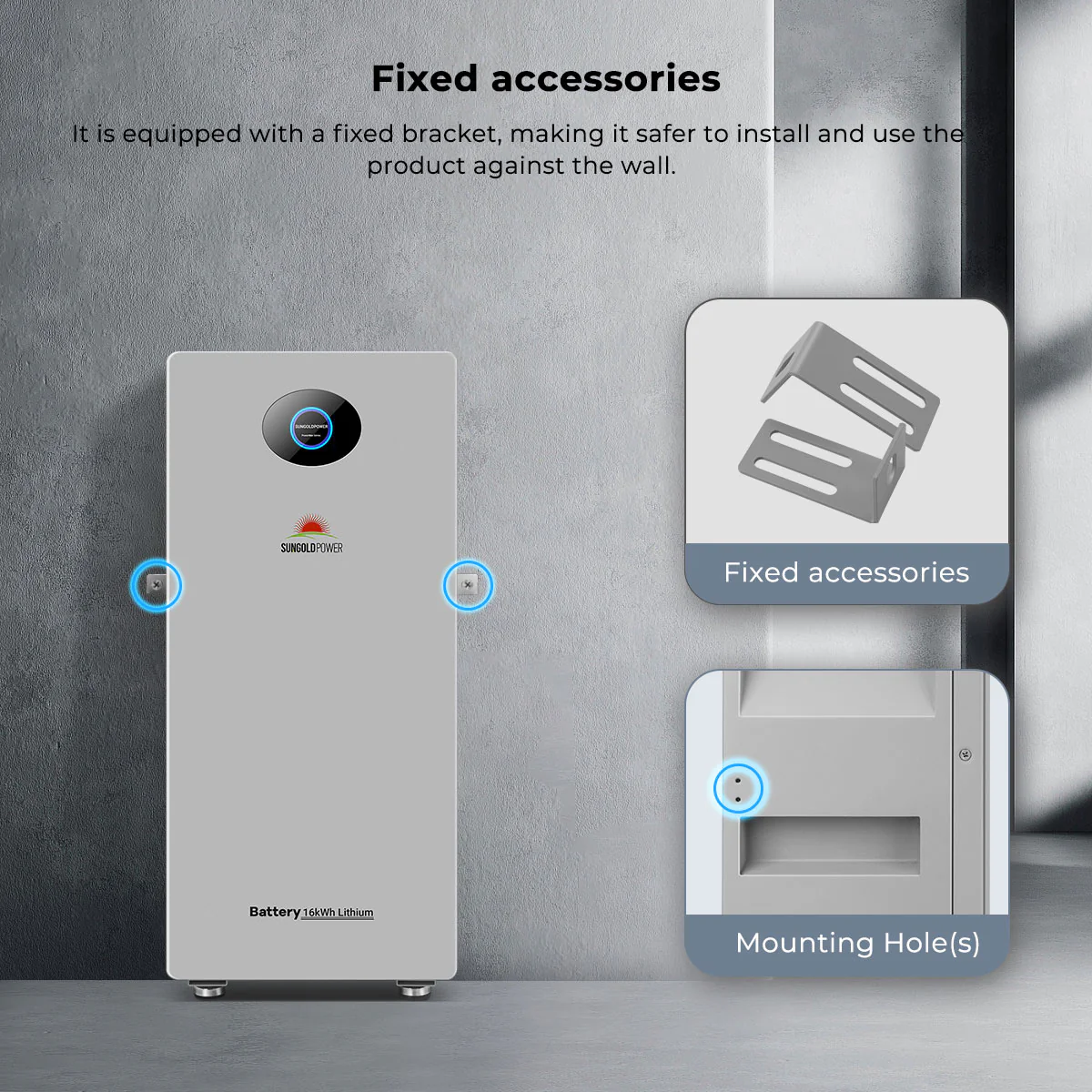

• Exterior wall mounting: On a sheltered exterior wall without requiring a building enclosure — reducing installation cost and complexity.
• Detached outbuildings: Sheds, barns, garages and workshops without climate control.
• Remote off-grid structures: Locations where running cable from indoor battery storage to outdoor generation equipment is impractical.

CEC Listing — The California Standard for Residential Storage

CEC Listed (California Energy Commission Listed) is a compliance status required for energy storage systems installed under California’s self-generation incentive programs and for net energy metering (NEM) interconnection in California utility service territories. Without CEC listing, a battery system is not eligible for California state incentive programs and may not receive utility approval for grid-connected installation.

The PowerMax’s CEC listing confirms it meets the California Energy Commission’s performance and safety evaluation criteria — a meaningful compliance credential for any buyer in a California utility service territory or any buyer considering future eligibility for California state incentive programs.

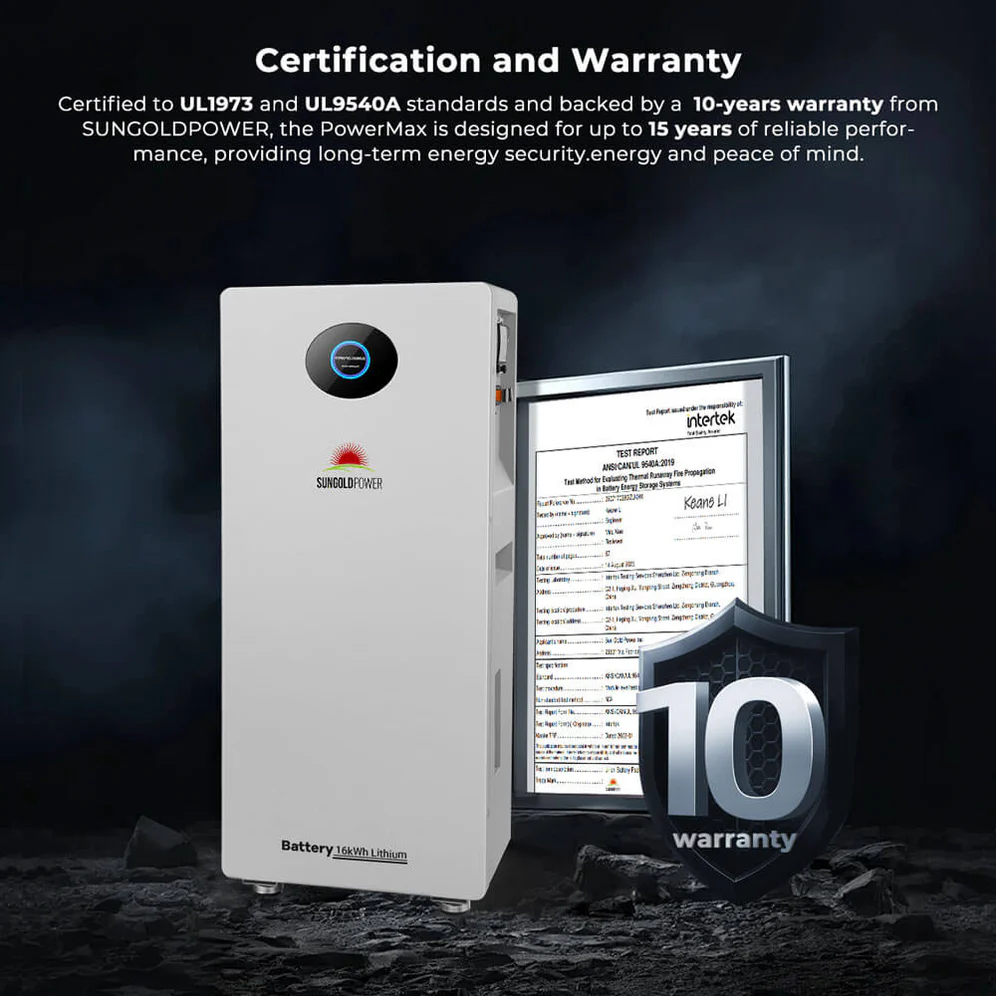

UL1973 and UL9540A — Dual Safety Certification

Both UL1973 and UL9540A apply to the PowerMax — the same dual-certification combination as the SG48100P and SG48200T. UL1973 confirms battery system performance and safety under standard and abuse conditions. UL9540A confirms thermal runaway propagation resistance — the certification that most residential fire marshals and insurance underwriters now require for energy storage permit approval.

For an outdoor-installed battery where the unit is more exposed to the environmental conditions that could trigger a fault scenario, UL9540A’s thermal runaway propagation testing carries additional practical relevance: it confirms that even in a worst-case fault scenario, the failure is contained within the unit rather than propagating to adjacent structures.

48V LiFePO4 Energy Storage Architecture

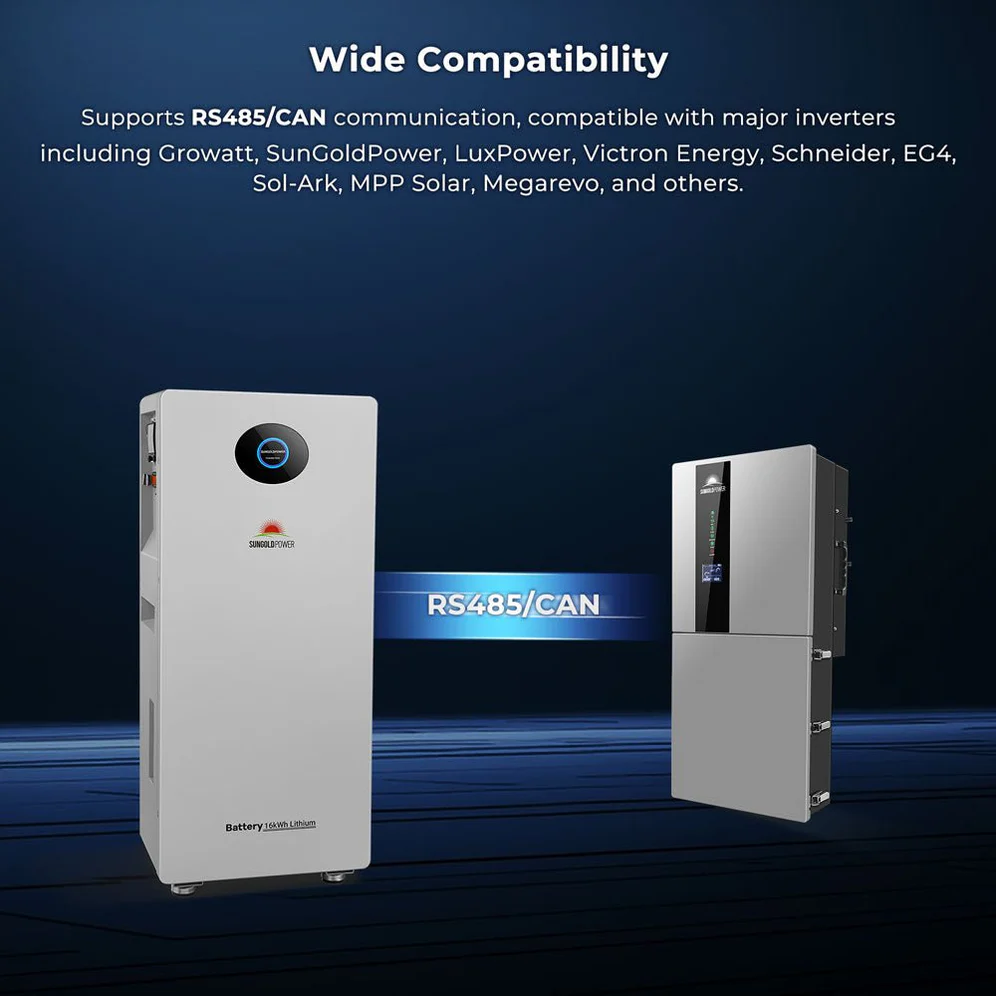

The PowerMax operates on the same 48V nominal architecture as the SG48100P and SG48100M — connecting to any 48V-compatible inverter and accepting charge from any 48V-configured MPPT solar charge controller or AC charger. LiFePO4 chemistry provides the stable discharge voltage, long cycle life and thermal safety properties that make it the dominant chemistry for stationary residential energy storage globally.

The combination of high single-unit capacity (16.07kWh), outdoor enclosure and dual UL plus CEC certification makes the PowerMax the appropriate specification for large residential, agricultural and small commercial off-grid and backup storage applications where indoor installation is impractical.

Applications for Large-Capacity Outdoor Storage

The PowerMax 314Ah is the appropriate 48 volt battery specification for:

• Large residential properties with outdoor battery installation requirements
• Agricultural facilities with outdoor power storage adjacent to solar arrays
• Remote off-grid structures without climate-controlled interior space
• California installations requiring CEC Listed equipment for incentive eligibility
• Commercial applications requiring high single-unit capacity with outdoor placement
• Backup power for outdoor equipment and infrastructure

Explore compatible inverters and solar systems in our 48V LiFePO4 Batteries, Hybrid Solar Inverters and Off-Grid Solar Systems categories.

FAQ

What makes the PowerMax 314Ah the right 48 volt battery for outdoor installation? The outdoor-rated enclosure — confirmed weatherproof with UL1973 and UL9540A certification — allows permanent outdoor installation without additional protective housing. At 16.07kWh, it is the highest-capacity single unit in the Sungold range, delivering the storage of three 100Ah units from one installation point. CEC listing makes it eligible for California incentive programs that indoor-only batteries may not satisfy.

What is CEC listed status and why does it matter for a 48 volt battery? CEC Listed status confirms the California Energy Commission has evaluated and listed the battery for use in California utility-connected and incentive-programme installations. Without CEC listing, a battery system may be ineligible for California’s Self-Generation Incentive Program (SGIP) and may not receive utility approval for grid-connected operation in some California service territories. For installations outside California, CEC listing is not required but indicates the battery has met the additional performance and safety criteria of the California evaluation process.

How does a 48v battery bank with the PowerMax compare to multiple 100Ah units? One PowerMax 314Ah unit delivers 16.07kWh — compared to approximately three SG48100P units (3 × 5.12kWh = 15.36kWh) for similar total storage. The single-unit PowerMax installation requires one battery connection, one communication cable and one set of DC wiring runs — versus three times that for three separate 100Ah units. For outdoor installations where wiring runs are longer and access is more limited, the single-unit simplicity of the PowerMax delivers meaningful installation cost reduction.
