48V Battery Solar — 2 × SG48100M Wall-Mounted LiFePO4, 10.24kWh, UL 1973

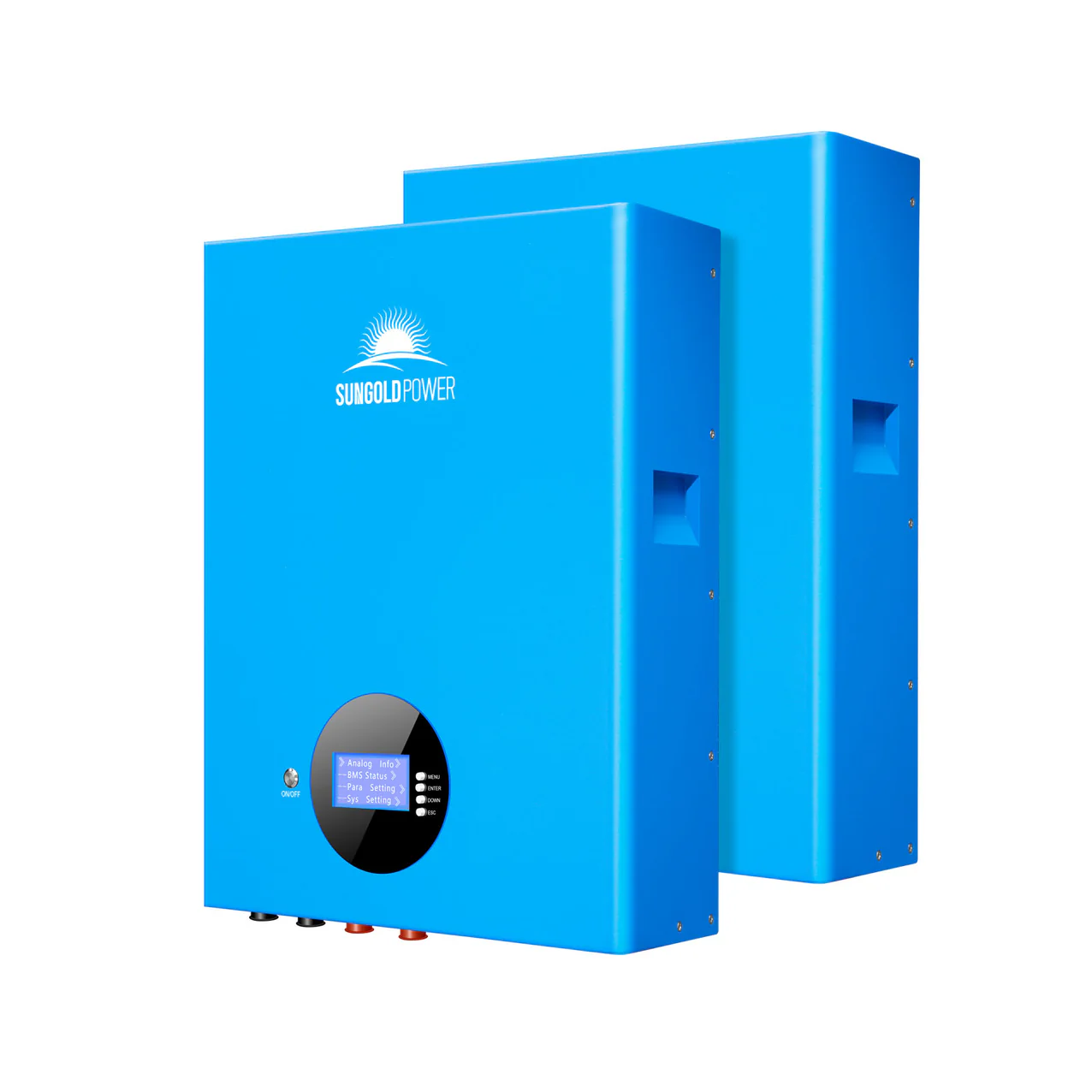

Two SG48100M wall-mounted units form a 48V battery solar storage bank of 10.24kWh — suitable for a residential solar system covering overnight household loads, a small commercial operation reducing peak demand charges, or an off-grid cabin requiring meaningful multi-hour autonomy. Each unit delivers 5.12kWh at 51.2V nominal, is rated for more than 7,000 deep cycles with a 10-year warranty and a 15-year design life, carries UL 1973 certification, and communicates via CAN, RS485, and RS232 with most major inverters. The wall-mount form factor keeps the battery bank off the floor and out of the way — a practical advantage in utility rooms, garages, and equipment spaces where floor space is limited.

Table of Contents

1. Wall-Mount Form Factor — Practical Advantages
2. 10.24kWh in a Residential Solar Storage Context
3. Intelligent BMS and Protection
4. Inverter Compatibility
5. Frequently Asked Questions

Wall-Mount Form Factor — Practical Advantages

The wall-mount design of the SG48100M is not simply an aesthetic choice — it addresses a genuine installation constraint that floor-standing or server rack batteries cannot solve. In a typical residential utility room, garage, or basement equipment space, floor area is shared with water heaters, HVAC equipment, electrical panels, and storage. A wall-mounted 48v lifepo4 battery bank removes the battery system from the floor entirely, leaving that footprint available and making the battery installation independent of floor layout changes over the system’s 15-year design life.

Wall mounting also improves cable management. With the battery fixed to the wall at a consistent height, the inverter and battery cables run a predictable path to the electrical panel — easier to install neatly, easier to inspect, and easier to service than floor-standing units whose position can shift over time.

The mounting hardware and installation requirements — wall stud spacing, weight ratings, and fastener specifications — should be confirmed with the product documentation before installation.

10.24kWh in a Residential Solar Storage Context

For a 48v battery solar system paired with a 5–10kW solar array, 10.24kWh of storage represents a practical overnight buffer that covers most residential overnight loads without generator backup:

• A household averaging 1kW of continuous overnight load — a refrigerator, a few lights, a TV, and standby loads — consumes 8kWh over eight hours. The 10.24kWh bank covers this with 2.24kWh in reserve.
• A small business running security systems, refrigeration, and basic lighting overnight — typically 0.5–1.5kW continuous — fits within the bank’s capacity at most consumption levels.
• A solar self-consumption installation — storing daytime solar surplus and dispatching it through the evening peak rate period — uses 10.24kWh as a meaningful daily cycling capacity that makes a measurable difference in monthly electricity cost.

Adding a third and fourth unit later expands capacity to 15.36kWh and 20.48kWh respectively, with no changes to the inverter or wiring architecture beyond additional battery units and connection cables.

Intelligent BMS and Protection

The BMS on each SG48100M unit provides cell-level monitoring and multi-layer protection:

• Overcharge protection — disconnects the charge path before any cell reaches the upper voltage limit.
• Deep discharge protection — disconnects the load before any cell falls below the lower voltage cutoff.
• Overload protection — hardware-level current interruption on the discharge path during overload events.
• Overheating protection — thermal monitoring with automatic shutdown on over-temperature events.
• Short-circuit protection — immediate fault current interruption independent of the overload protection path.

The LCD on each unit displays real-time state of charge and operating status — a local monitoring capability that remains functional without inverter communication or a smartphone app.

Inverter Compatibility

The SG48100M is compatible with most inverters via CAN, RS485, and RS232. Confirmed compatible brands include Growatt, Deye, SunGoldPower, Luxpower, Victron Energy, Schneider, Phocos, and SMK. When BMS-to-inverter communication is active, the inverter reads the battery’s state of charge and current limits in real time — managing the battery correctly across every charge and discharge cycle without relying on voltage-based estimation.

Browse our full 48V Wall-Mounted Batteries, Solar Battery Storage, and Residential Energy Storage for compatible inverters and system accessories.

Frequently Asked Questions

Q: What is the difference between the SG48100M wall-mount and the SG48100P server rack format? The SG48100M and SG48100P share the same core specifications — 51.2V, 100Ah, 5.12kWh, ≥7,000 cycles, UL 1973 — but differ in mounting format. The SG48100M mounts to a wall, keeping floor space clear. The SG48100P slides into a standard server rack enclosure. The choice depends on the available installation space and the preferred cable management approach.

Q: Can I expand a two-unit SG48100M bank to four or more units? Yes. The maximum parallel configuration is 32 units. A two-unit bank expands to four, eight, or more units by adding matching SG48100M units at equal state of charge to the existing parallel connection. No changes to the inverter or busbar architecture are required up to the point where the busbar and cabling need to be resized for the higher combined current capacity.

Q: What 48v battery solar inverter is required for this bank? Any 48V hybrid or off-grid inverter compatible with CAN, RS485, or RS232 communication works with the SG48100M. The inverter should be rated for the battery’s maximum discharge current at 51.2V and should have a lithium battery charging profile with a configurable upper charge voltage of 58.4V for LiFePO4 chemistry.

Q: Does the SG48100M have a self-heating function? The source data does not specify a self-heating function for the SG48100M. If installation in a location subject to temperatures below 32°F is planned, the SGH48100T with its confirmed self-heating function is the more appropriate choice. Confirm operating temperature range with SunGoldPower before specifying the SG48100M for cold-climate installations.

Q: What is the 48v battery bank maximum configuration for SG48100M units? The maximum parallel configuration is 32 units, delivering 163.84kWh of total capacity at 51.2V nominal. This capacity range covers large residential installations, small commercial buildings, and light industrial applications within a single battery model and architecture.
