Hybrid Solar Kit 15.2KW 48V Split Phase 30.72KWH 32 x 415W SGH-7.6DN6E

Complete Solar Power Systems — Authentic 15.2KW 48V Split Phase 30.72KWH 32 x 415W SGH-7.6DN6E

The complete solar power systems SGH-7.6DN6E delivers a 15.2KW dual 7.6KW inverter hybrid solar kit with 13280W of 415W monocrystalline solar panels and 30.72KWH of LiFePO4 lithium battery storage — a comprehensive and powerful solar solution for large residential properties and light commercial applications requiring substantial inverter capacity substantial battery autonomy and a complete matched component set. Supporting off-grid hybrid and grid-tied configurations with flexible panel inclusion options.

Table of Contents

1. Product Details And Configurations
2. About The 15.2KW Complete Solar Power System
3. Hybrid Solar System Kit Components
4. Why Choose Complete Solar Power Systems
5. System Architecture
6. What Is Included
7. FAQ

Product Details And Configurations

About The 15.2KW Complete Solar Power System

The complete solar power systems SGH-7.6DN6E represents the dual 7.6KW inverter configuration at full specification — 15.2KW of combined inverter output — 13280W of solar panel input from 32 x 415W monocrystalline panels — and 30.72KWH of LiFePO4 storage providing more than one full day of average US household energy autonomy from battery alone.

This system occupies an important position in the product range — delivering substantially more inverter capacity than the 11.4KW single-inverter systems while remaining within reach for large residential applications that do not require the maximum 51.2KWH storage of the SGH-11N5E configuration.

Hybrid Solar System Kit Components

The hybrid solar system kit components in the SGH-7.6DN6E represent a carefully matched complete system:

• Dual 7.6KW Inverters — 15.2KW combined capacity for high-load residential and light commercial applications
• 32 x 415W Monocrystalline Panels — 13280W solar input capacity — UL CE TUV CEC certified panels
• 6 x LiFePO4 Batteries — 30.72KWH capacity — 51.2V nominal — the safest and most cycle-stable lithium chemistry available
• Enclosed Battery Cabinet — organised safe storage for the complete 6-battery bank
• Complete Wiring Set — 4 sets x 50ft extension cables — 2 x 2/0 AWG battery cables — 4 x 25A PV breakers — 2 x 200A DC breakers

Why Choose Complete Solar Power Systems

The complete solar power systems approach of the SGH-7.6DN6E eliminates the three most common challenges in residential solar system assembly:

• Component Matching — every component in the kit is pre-matched and sized for compatibility — no engineering knowledge required to verify inverter-battery-panel compatibility
• Procurement Complexity — a single purchase replaces the need to source six or more system components from multiple suppliers with different lead times
• Installation Confidence — a pre-specified system with matched components reduces the risk of commissioning issues caused by incompatible specifications between major system elements

System Architecture

The SGH-7.6DN6E system manages energy across four sources — solar panels battery storage utility grid and backup loads:

• Solar generation powers loads directly during peak sun hours
• Surplus solar charges the 30.72KWH LiFePO4 battery bank
• Battery supplements loads when solar is insufficient
• Grid provides backup only when solar and battery are both below threshold
• Surplus generation can be exported to the grid under net metering programmes

Browse our full Complete Solar Power Systems and Hybrid Solar Kits collections for more system options.

What Is Included

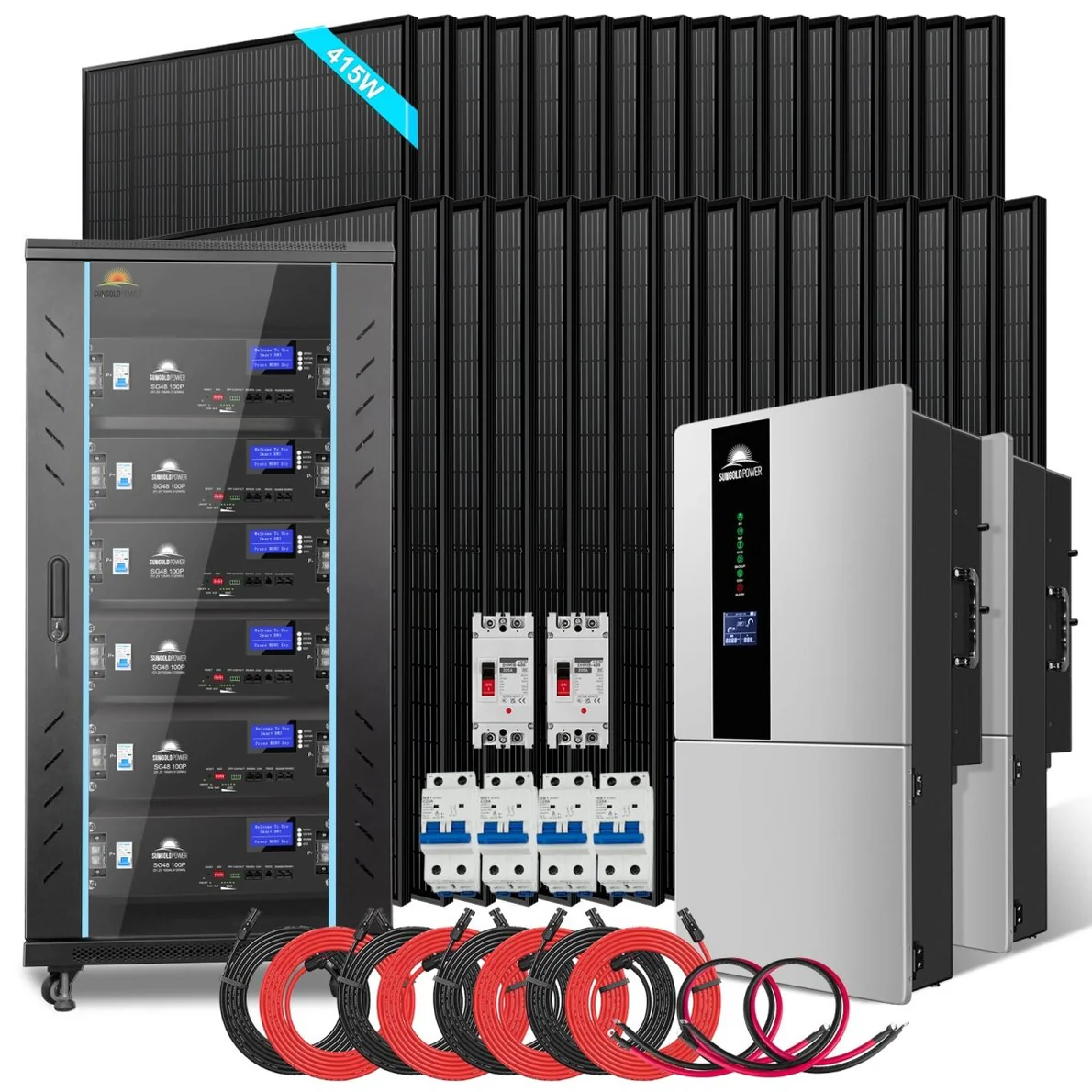

SGH-7.6DN6E — 15.2KW Dual Inverter 30.72KWH With Panels:

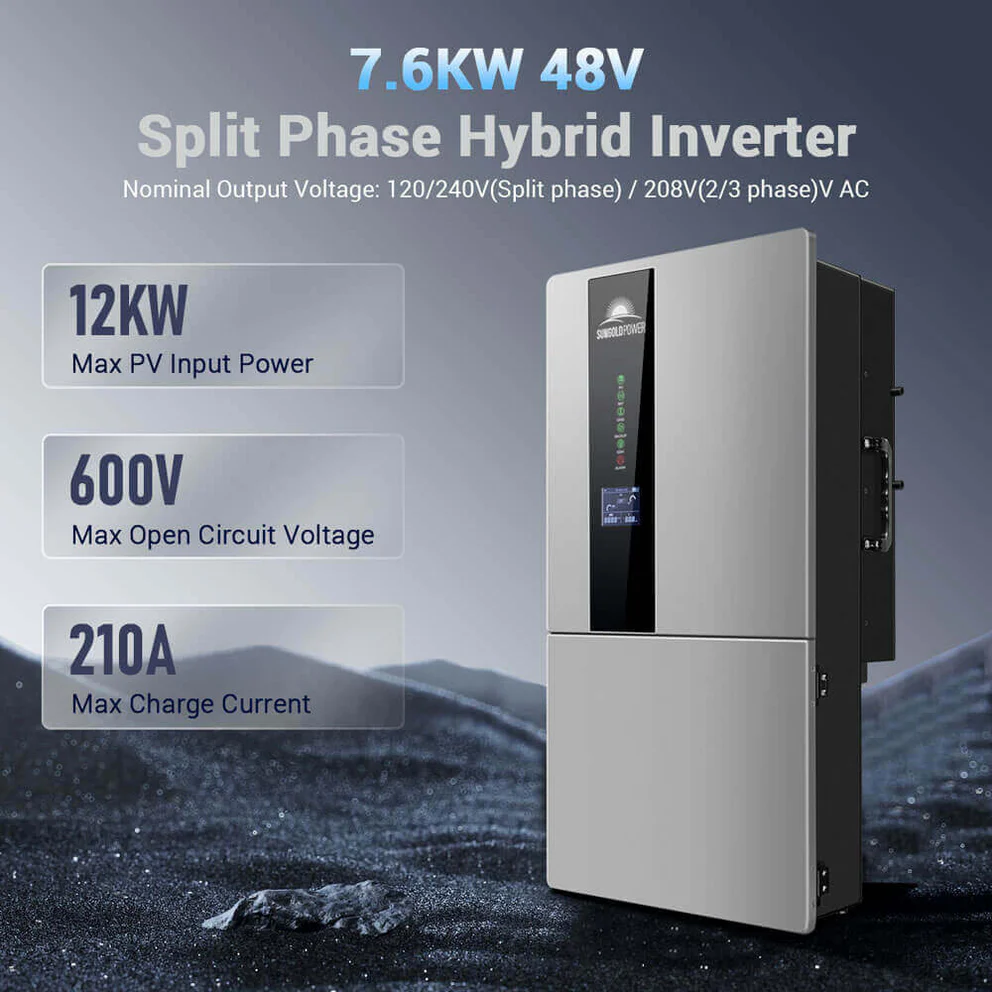

• 2 x 7.6KW 48V Split Phase Hybrid Solar Inverters
• 32 x 415W Monocrystalline Solar Panels

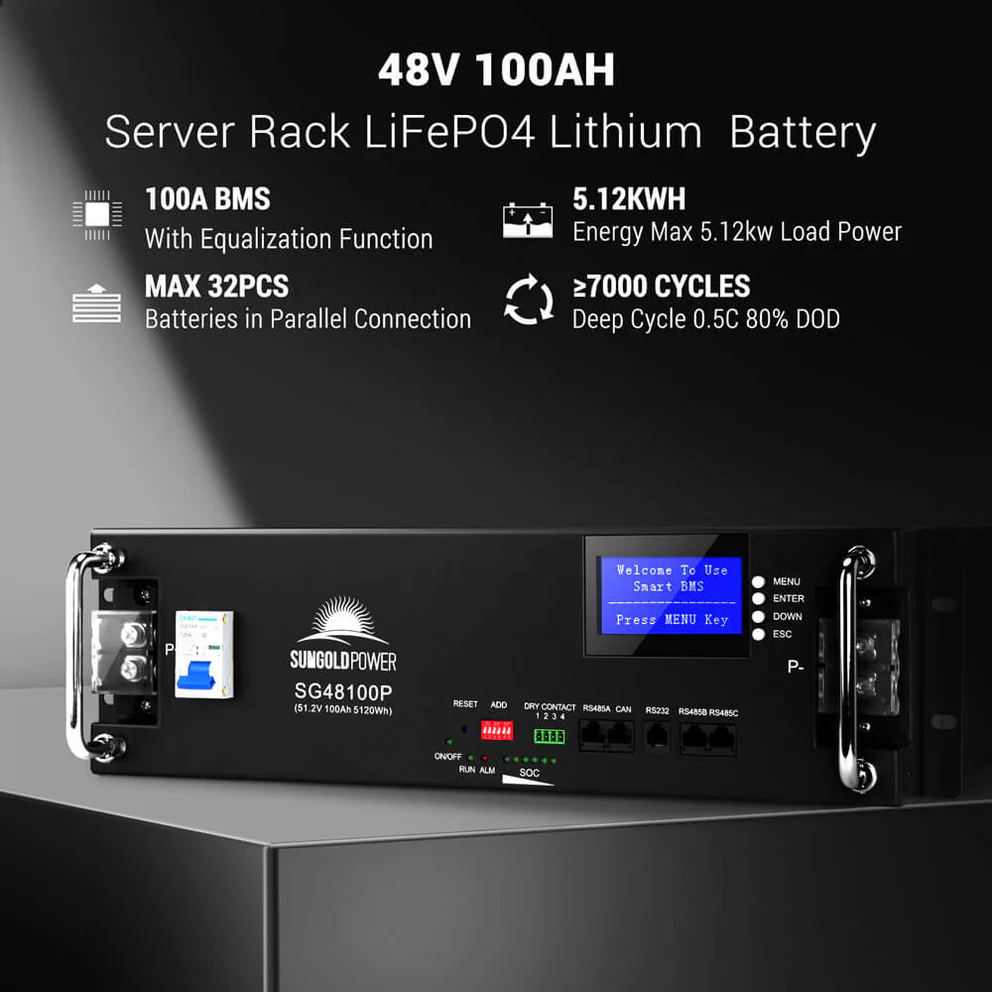

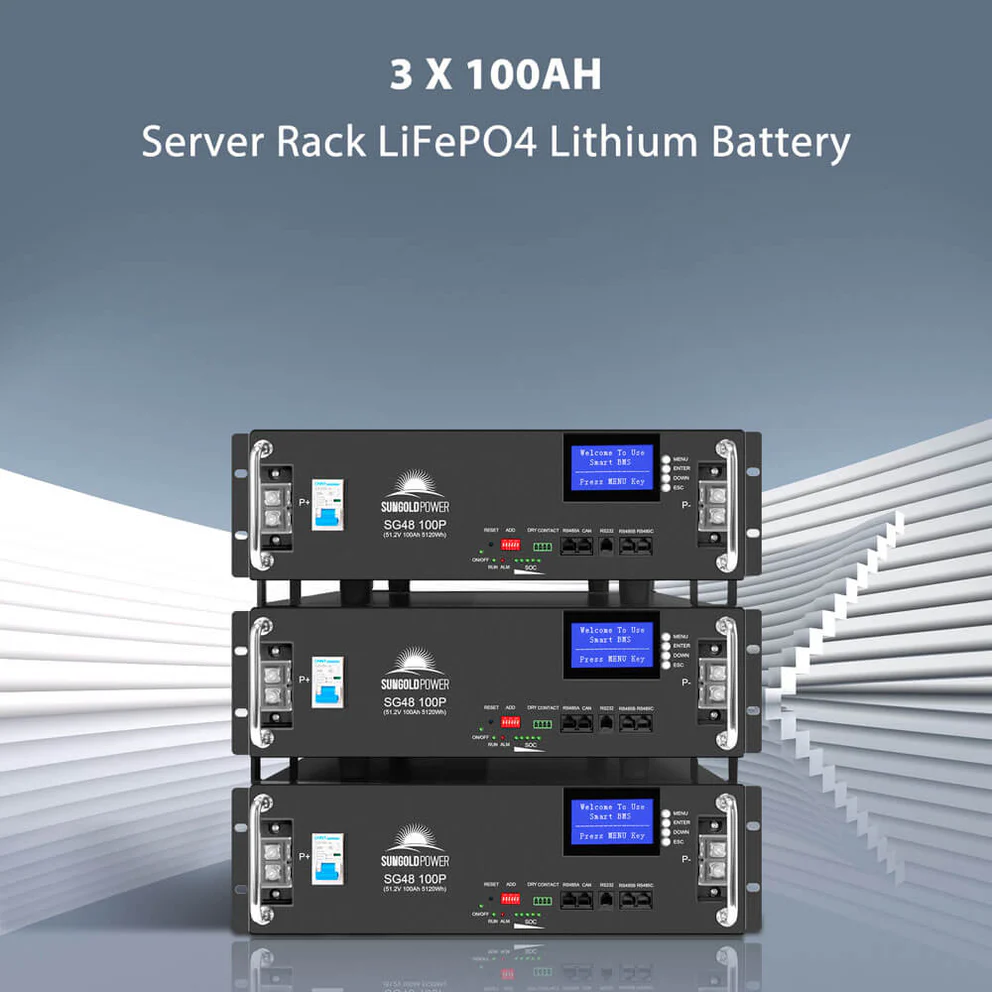

• 6 x 100AH 51.2V LiFePO4 Battery — 30.72KWH total
• 1 x Enclosed Battery Cabinet
• 4 sets x 50ft Solar Extension Cables
• 2 x 2/0 AWG Battery Cable
• 4 x 25A PV Breakers
• 2 x 200A DC Breaker

Frequently Asked Questions

Q: What are the complete solar power systems SGH-7.6DN6E? The complete solar power systems SGH-7.6DN6E is a 15.2KW dual 7.6KW inverter hybrid kit — 32 x 415W monocrystalline panels — 6 x 100AH LiFePO4 batteries at 30.72KWH — enclosed battery cabinet — complete wiring set — supporting off-grid hybrid and grid-tied configurations.

Q: What is the hybrid solar system kit component matching? The hybrid solar system kit pre-matches all major system components — dual inverters — monocrystalline panels — LiFePO4 battery bank — wiring and protection — eliminating compatibility verification requirements and simplifying procurement for the complete solar power system installation.

Q: Why choose complete solar power systems over individual components? Complete solar power systems eliminate component matching complexity procurement from multiple suppliers and commissioning risk from incompatible specifications — the SGH-7.6DN6E providing a fully pre-specified and matched system ready for installation as a single purchase.

Q: What is the 30.72KWH battery capacity in practical terms? The 30.72KWH LiFePO4 battery capacity provides more than one full day of average US household energy autonomy from storage alone — with the 13280W solar array continuing to recharge the battery during daylight extending effective grid independence well beyond a single overnight period.

Q: Is the SGH-7.6DN6E available without solar panels? Yes — the SGH-7.6DN6E-s variant provides the dual inverter system and 30.72KWH battery bank without panels — for buyers sourcing panels separately or adding this system to an existing solar panel installation.
