Complete Off-Grid Solar Kit 6.5kW 48V 120V/240V 10.24kWh LiFePO4 6×450W Solar Panels (SGK-65PRO)

Off Grid Solar Power — Complete 6.5kW 450W LiFePO4 System

Clean, quiet off grid solar power at 6.5kW — the SGK-65PRO is a complete off-grid solar kit with 6 × 450W monocrystalline solar panels, 10.24kWh of LiFePO4 battery storage with Bluetooth monitoring, a 6.5kW 48V 120V/240V inverter and all mounting hardware in one package. Stepping up from the 370W panel configurations, the 450W panels in the SGK-65PRO deliver 2,700W of total solar capacity — 21.6% more generation than equivalent 6-panel 370W arrays — from the same panel count and similar rooftop footprint. For cabin owners, remote property buyers and homeowners seeking serious off grid solar power without the complexity of a 10kW installation, the SGK-65PRO is the practical optimum.

Table of Contents

1. Kit Contents
2. System Specifications
3. 450W vs 370W — Generation Advantage
4. 6.5kW 48V 120V/240V Inverter
5. 10.24kWh Bluetooth LiFePO4 Battery
6. Small Solar Panel Advantages
7. Installation and Expansion
8. FAQ

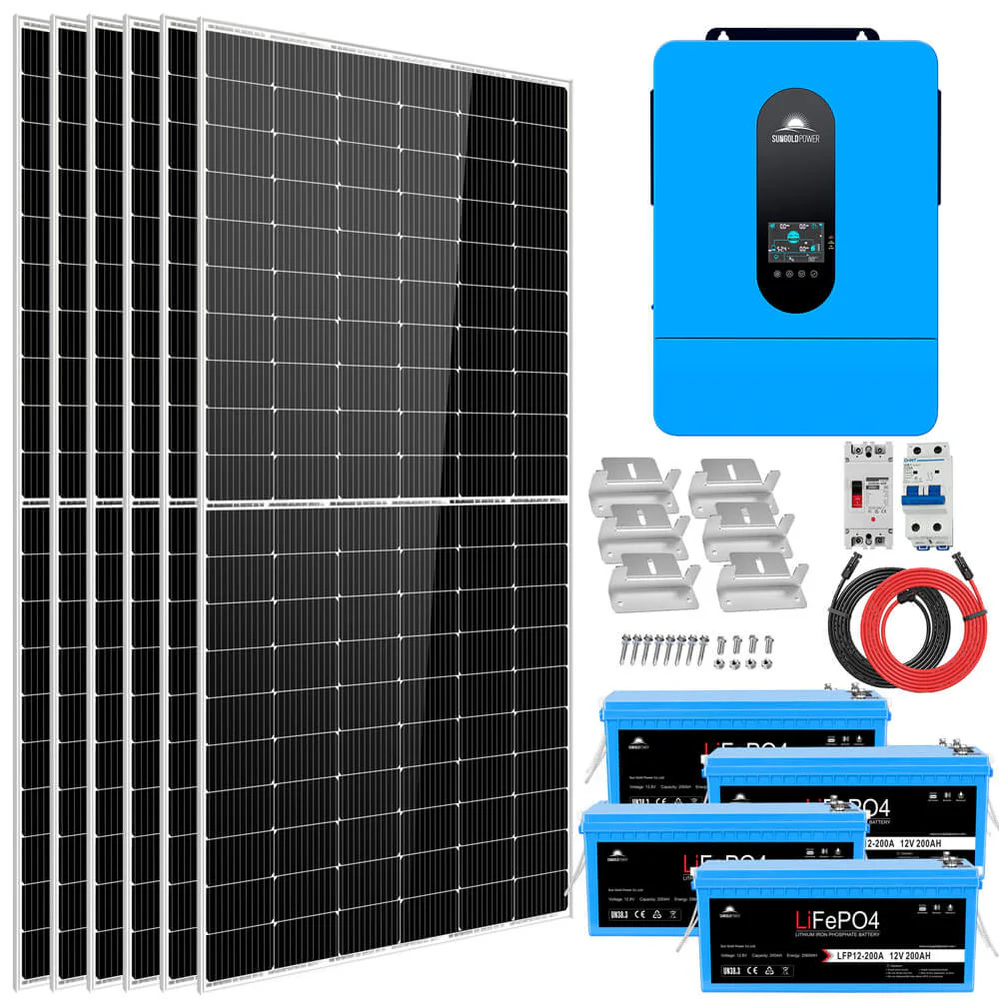

Kit Contents — SGK-65PRO

• 1 × 6,500W 48V DC 120V/240V AC Output Inverter
• 6 × 450W Monocrystalline Solar Panels
• 4 × 200AH LiFePO4 Battery with Bluetooth
• 6 × Sets Mounting Z-Brackets
• 1 × 50ft Solar Extension Cables (Inverter PV Input)
• 1 × 200A DC Breaker
• 1 × 25A PV Breaker

System Specifications

450W vs 370W — Generation Advantage

The SGK-65PRO uses 450W panels rather than the 370W panels found in the SGK-PRO series — a 21.6% increase in wattage per panel that translates directly into 21.6% more daily generation from the same 6-panel rooftop footprint.

At 2,700W of total solar capacity versus 2,220W in the 370W panel kits, the SGK-65PRO generates approximately 11–16kWh daily versus 9–13kWh — a difference that meaningfully improves battery recharge reliability in variable irradiance conditions and extends the buffer capacity before overnight depletion becomes a concern.

For small solar panels buyers comparing per-panel wattage across different kit specifications, the 450W specification in the SGK-65PRO represents current mainstream commercial efficiency — more generation per panel, per dollar and per square foot than the 370W panel alternative. Small solar panel kits using 450W cells punch well above their physical size in output terms — making them the preferred choice for space-constrained installations where panel count is fixed and generation maximisation per panel matters.

6.5kW 48V 120V/240V Inverter

The 6.5kW split-phase inverter delivers 120V/240V output — handling standard North American residential electrical loads including 240V appliances and 120V circuits simultaneously. The 48V DC bus voltage minimises wiring current requirements between batteries and inverter, reducing wiring cost and installation complexity.

At 6,500W of continuous output, this inverter comfortably handles refrigerator, lighting, water pump, entertainment systems, computer equipment and intermittent tool use simultaneously — the essential loads of a well-equipped cabin or moderate-sized off-grid home.

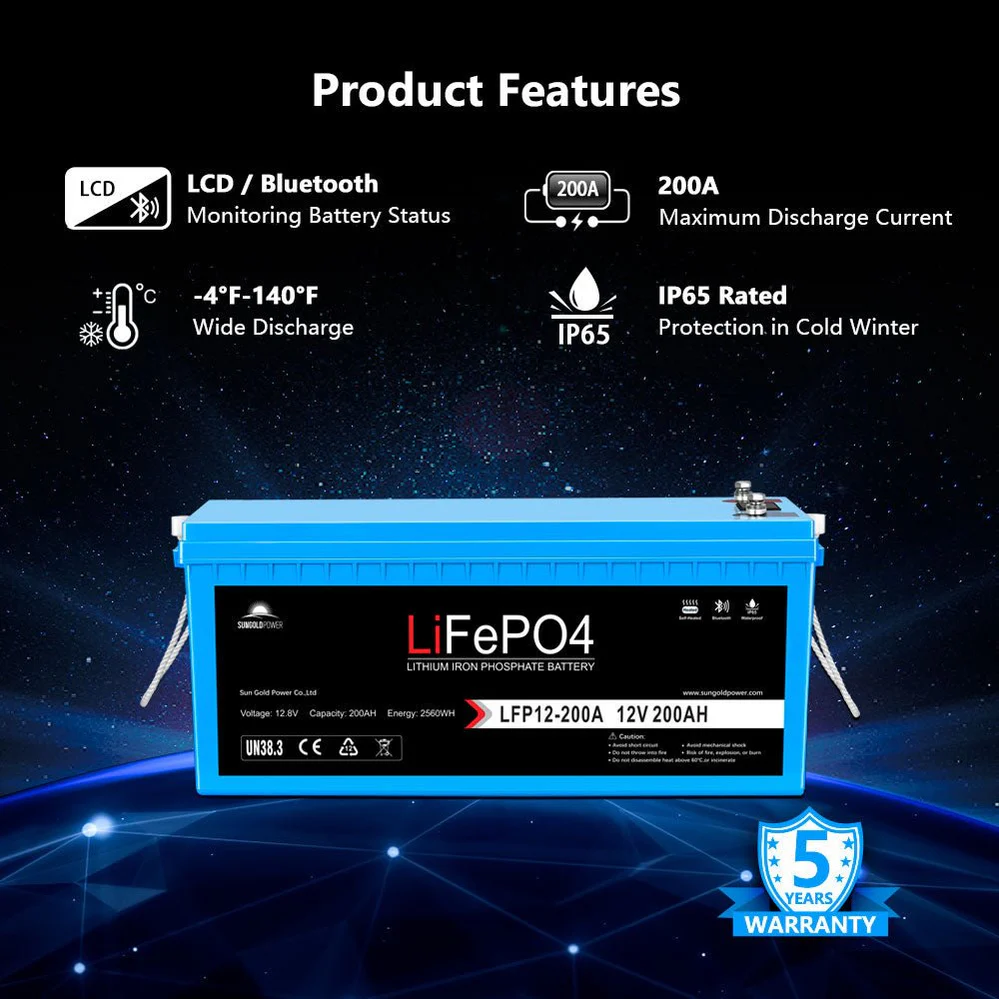

10.24kWh Bluetooth LiFePO4 Battery

Four 200AH LiFePO4 batteries with Bluetooth provide 10.24kWh of storage with real-time smartphone monitoring. At 10.24kWh with 2,700W of daily solar generation, this system is designed for moderate daily consumption profiles — cabins and homes consuming 8–12kWh per day from a combination of solar generation and stored energy.

Small Solar Panel Advantages

The 450W panel specification in the SGK-65PRO represents the optimal size class for residential rooftop and compact ground-mount installations. At 67–70 inches in typical panel length, 450W panels fit standard residential roof sections without the span of 550W or 590W large-format panels — making them the practical choice for rooftops with dormers, skylights or complex geometries.

For small solar panels applications where panel handling ease is a consideration — residential rooftop work without mechanical lifting — the 53-lb weight class of 450W panels is manageable for two-person installation teams, unlike the 68–70 lb weight of 550W+ panels.

Installation and Expansion

The included mounting Z-brackets, 50ft solar extension cables and complete breaker set cover all essential installation hardware for standard rooftop mounting. Additional batteries can be added to increase storage beyond 10.24kWh. Additional panels can be connected to increase generation within the inverter’s input specifications.

Browse the complete solar kit range in our Solar Kits, Off-Grid Solar Systems and Solar Panels categories.

FAQ

What is off grid solar power and how does the SGK-65PRO deliver it? Off grid solar power is electricity generated from solar panels, stored in batteries and consumed independently of the utility grid. The SGK-65PRO delivers off grid solar power through 6 × 450W solar panels generating up to 16kWh daily, a 10.24kWh LiFePO4 battery storing that energy for overnight use, and a 6.5kW 48V 120V/240V inverter converting stored DC power to standard AC electricity for all household appliances.

Why does this kit use 450W panels instead of smaller panels? The 450W specification delivers 21.6% more generation per panel than 370W alternatives from the same rooftop footprint — producing 2,700W versus 2,220W total from the same 6-panel installation. Higher per-panel wattage directly improves daily generation reliability, battery recharge consistency and system resilience during variable weather. For off grid solar power systems where generation reliability matters, 450W is a meaningfully better specification than 370W at similar cost.

What small solar panels advantages apply to this system? The 450W panels used in this kit fall into the small solar panel size class — approximately 67–70 inches length, 53 lb weight — making them suitable for complex residential rooftops, two-person installation without mechanical lifting and compact ground-mount arrays. The small solar panel size advantage is particularly relevant for cabins and homes where large-format 550W+ panels exceed available roof section dimensions.

What small solar panel kits compare to the SGK-65PRO? Small solar panel kits in the 6-panel 450W class — 2,700W total — represent the mainstream mid-range for cabin and moderate residential off-grid applications. Compared to 370W 6-panel kits (2,220W), the SGK-65PRO provides 21.6% more generation for a modest price difference. Compared to 10-panel 550W kits (5,500W), the SGK-65PRO is appropriate for lower daily consumption profiles where 10kW of inverter output and 22kWh of generation are more than required.

Can I expand this off grid solar power system after installation? Yes — additional LiFePO4 batteries can be added to increase storage beyond 10.24kWh. Additional 450W panels can be connected to the inverter’s PV inputs within its input specifications. For larger output requirements in the future, a second inverter can be added to the system configuration.
