Off-Grid Solar Kit 10kW 12×550W Panels 20.48-32.14kWh LiFePO4 Battery Split Phase 120V/240V (SGR-10K25S)

Off Grid Solar Power Kits — 10kW 550W Panels Split Phase 120V/240V System

When off grid solar power kits need to handle everything — off grid solar power kits that cover air conditioning, well pumps, workshop tools, office equipment and full-home lighting simultaneously — the SGR-10K25S is the specification to buy. This complete 10kW off-grid solar system includes 12 × 550W monocrystalline solar panels, a choice of 20.48–32.14kWh LiFePO4 battery options, a 10kW split-phase 120V/240V inverter, mounting hardware and all necessary cables. With up to 25.6kWh of daily generation from only four hours of sunlight, this off grid solar kit delivers the generation margin that keeps batteries full and loads running regardless of what the household demands.

Table of Contents

1. Kit Contents and Battery Options
2. System Specifications
3. 550W High-Output Solar Panels
4. Battery Configuration Options
5. 10kW Split-Phase Performance
6. 25.6kWh Daily Production
7. Scalability — 6-Unit Parallel
8. FAQ

Kit Contents and Battery Options

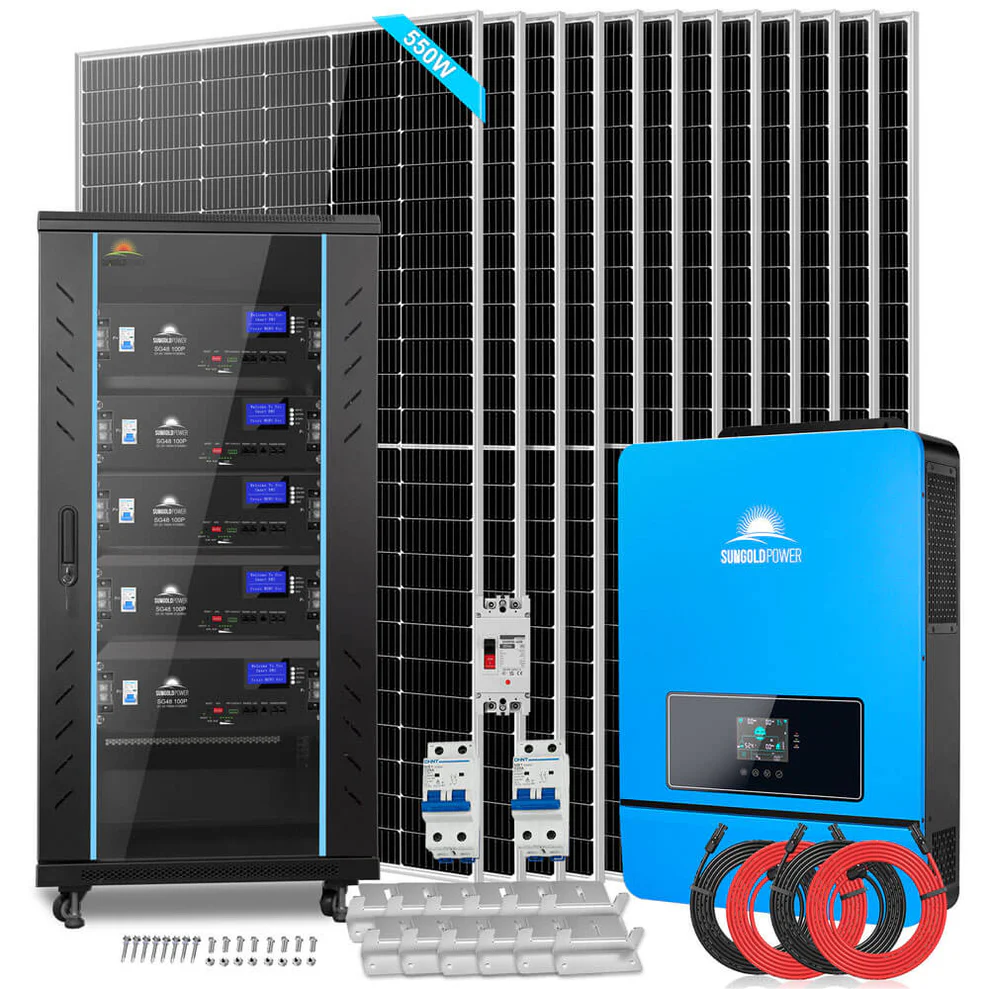

Standard Kit (SGR-10K25S):

• 1 × 10,000W 48V DC 120V/240V AC Inverter (Up to 6 units parallel)
• 12 × 550W Monocrystalline Solar Panels
• 2 Sets × 50ft Solar Extension Cables (Inverter PV Input)
• 12 Sets × Mounting Z-Brackets
• 1 × 200A DC Breaker
• 2 × 25A PV Breaker

Battery Option A: 5 × 100AH 51.2V LiFePO4 SG48100P + Enclosed Battery Cabinet (25.6kWh) Battery Option B: 5 × 100AH 51.2V Self-Heating LiFePO4 SGH48100T + Enclosed Battery Cabinet (25.6kWh) Battery Option C: 2 × 200AH 51.2V LiFePO4 SG48200T (20.48kWh) Battery Option D: 2 × PowerMax 51.2V 314AH Outdoor Energy Storage Battery + Parallel Cable (32.14kWh)

System Specifications

550W High-Output Solar Panels

The 12 × 550W monocrystalline panels deliver 6,600W of total solar generation capacity — among the highest generation arrays in the mid-range off grid solar kits category. At 550W per panel, fewer panels are needed for a given generation target compared to lower-wattage alternatives — reducing mounting hardware requirements, wiring complexity and installation labour.

For buyers comparing pv panel kits specifications across the range, the 550W panel specification in the SGR-10K25S means the 12-panel array matches the generation of a 16–18 panel array using 400W panels — a meaningful installation efficiency advantage for rooftop and ground-mount projects with space constraints.

Battery Configuration Options

The SGR-10K25S offers the widest battery selection of any kit in the range — four distinct configurations covering three different battery technologies:

Standard LiFePO4 (Option A): Industry-standard LiFePO4 chemistry in the proven 100AH 51.2V format with enclosed cabinet — the most widely deployed battery configuration in the range.

Self-Heating LiFePO4 (Option B): Includes integrated heating elements that maintain optimal operating temperature in cold climates — the critical specification for installations where ambient temperatures regularly drop below 0°C (32°F). For off grid solar panels installations in northern latitudes and mountain locations, self-heating capability prevents cold-weather charging limitations that degrade system performance in winter.

200AH LiFePO4 (Option C): Larger individual battery capacity in a two-battery configuration — providing 20.48kWh storage with simpler battery management in a reduced physical footprint.

PowerMax Outdoor (Option D): Highest total storage at 32.14kWh in an outdoor-rated enclosure — the right choice for exposed installation locations and maximum storage buffer.

10kW Split-Phase Performance

At 10kW continuous output with 120V/240V split-phase capability, this off grid solar system kit handles every high-demand appliance in a fully equipped residential property simultaneously. Central air conditioning, well pump, electric water heater, dryer, refrigerator and a complete lighting and entertainment load can all operate concurrently within the 10kW continuous rating.

25.6kWh Daily Production

25.6kWh of daily generation from only four hours of peak sun — this is the headline performance metric that makes the SGR-10K25S one of the most productive off grid solar power systems available at pallet scale pricing. Most North American households consume between 20–30kWh per day. The SGR-10K25S meets or exceeds average daily consumption from a single pallet of 550W panels — keeping batteries charged and loads running without compromise.

Scalability — 6-Unit Parallel

The SGR-10K25S inverter supports up to 6 units connected in parallel — enabling total system output expansion from 10kW to 60kW in single-phase, split-phase or three-phase configurations. This scalability makes the SGR-10K25S appropriate as both a standalone residential system and as the foundation for larger commercial or multi-property installations.

Explore larger and smaller kit configurations in our Solar Kits, Off-Grid Solar Systems and Solar Panels categories.

FAQ

What makes this the best off grid solar power kit at 10kW? The SGR-10K25S combines the highest generation array in the mid-range — 12 × 550W panels providing 6,600W and up to 25.6kWh daily — with four distinct battery configuration options (including self-heating LiFePO4 for cold climates and outdoor PowerMax storage), 10kW split-phase 120V/240V inverter and full 6-unit parallel expandability. This breadth of specification across generation, storage and output makes it the most versatile 10kW off grid solar power kit in the category.

What is the daily energy production of this off grid solar kit? With 6,600W of solar panels and 4 hours of peak sun, this off grid solar kit produces up to 25.6kWh daily — meeting or exceeding average North American household consumption of 20–30kWh per day. Longer peak sun hours (5–6 hours in summer and sun-belt locations) increase daily production proportionally.

Which battery option should I choose for this kit solar energy system? Choose the self-heating LiFePO4 option (Battery Option B) for installations where winter temperatures regularly drop below 0°C — cold climates prevent standard LiFePO4 from accepting charge efficiently below freezing. Choose the PowerMax outdoor battery (Option D) for maximum storage and outdoor-rated enclosures. Choose the standard configurations (Options A and C) for typical indoor or climate-controlled battery locations at moderate temperatures.

Can this off grid solar system kit power a full residential home? Yes — at 10kW continuous output with 25.6kWh daily generation and 20–32kWh battery storage, the SGR-10K25S comfortably powers a fully equipped residential home including central air conditioning, well pump, electric water heater, refrigerator, washer, lighting, entertainment systems and office equipment — all the loads of normal residential living.

How scalable is this off-grid solar system packages with batteries? The SGR-10K25S inverter supports up to 6 units in parallel — enabling expansion from 10kW to 60kW output. Additional solar panels can be added to increase generation. Additional battery banks can be added to increase storage. The system architecture supports growth from a single-residence system to a multi-property or commercial installation without requiring a complete system redesign.
