Off Grid Solar Power Systems — Authentic 12KW 48V 120V/240V 25.6KWH LiFePO4 12 x 415W SGR-12K20E
The off grid solar power systems SGR-12K20E is a complete 12KW split phase 120/240V kit with 12 x 415W monocrystalline solar panels — 25.6KWH of LiFePO4 battery storage — dual 100A MPPT charge controllers — and all mounting wiring and protection components. Producing approximately 20KWH per day at 4 hours of sunlight — this system is powerful enough to run air conditioners well pumps lights refrigerators televisions workshops offices and even light commercial and industrial applications completely off-grid. Easily expandable with additional batteries and solar panels for future growth.
Table of Contents
- Product Details
- About The 12KW System
- Off Grid Solar Inverter
- Off Grid Solar Products Components
- Off Grid Supplies Included
- MPPT Charge Controllers
- FAQ
Product Details
| Detail | Value |
|---|---|
| Model | SGR-12K20E |
| Inverter | 12000W 48VDC 120/240VAC |
| Solar Panels | 12 x 415W Monocrystalline |
| Total Solar Capacity | 4980W |
| Daily Production | ~20KWH at 4 sun hours |
| Battery Storage | 5 x 100AH 51.2V LiFePO4 = 25.6KWH |
| Battery Cabinet | 1 x Enclosed — 5 battery capacity |
| MPPT Controllers | 2 x 100A |
| Extension Cables | 2 sets x 50ft |
| MPPT Battery Cables | 2 sets |
| Mounting | 12 sets Z-Brackets |
| DC Breaker | 1 x 400A |
| PV Breakers | 2 x 25A |
About The 12KW System
The off grid solar power systems SGR-12K20E addresses the requirements of larger off-grid residential and light commercial applications — the 12KW single-inverter split phase architecture delivering 120/240V output compatible with standard North American electrical systems. The 25.6KWH LiFePO4 battery bank provides more than one full day of average household energy autonomy from storage alone — with the 12-panel solar array generating approximately 20KWH daily to maintain battery charge and power loads simultaneously under typical 4-hour peak sun conditions.
The system is designed for straightforward expansion — additional batteries panels and compatible inverters can be added at any point as energy requirements grow without modifying the existing system architecture.
Off Grid Solar Inverter

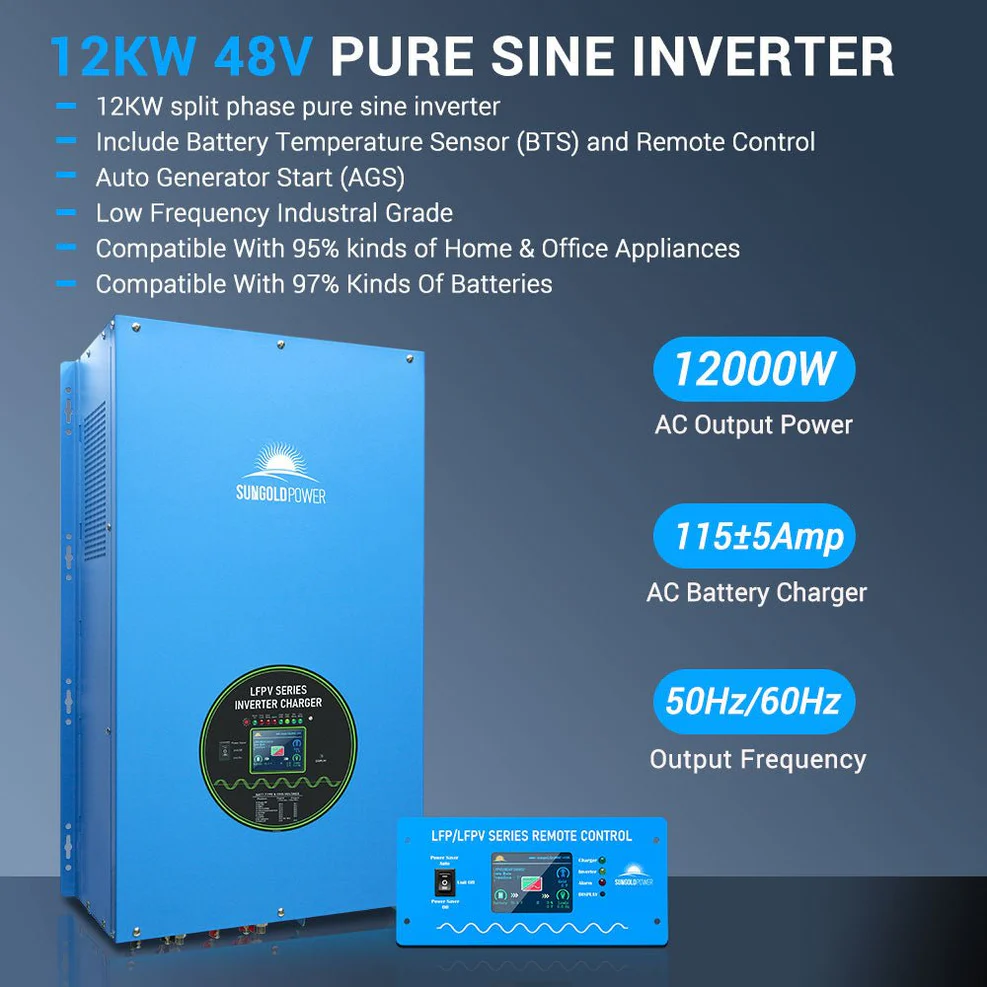

The off grid solar inverter in the SGR-12K20E is a single 12000W 48VDC 120/240VAC unit — one of the most capable single-unit off-grid inverters available in the residential solar kit market. The split phase output enables direct connection to a standard North American load centre — powering both 120V and 240V loads including HVAC units well pumps workshop equipment and all standard household appliances without requiring an additional transformer or phase-splitting device.
Key off grid solar inverter capabilities:
- 12000W Continuous Output — handles high simultaneous load combinations without load shedding
- 48V Battery Interface — efficient low-loss DC connection to the LiFePO4 battery bank
- 120/240V Split Phase — standard North American electrical system compatibility
- MPPT Integration — works alongside the dual 100A MPPT charge controllers for optimised solar harvest
Off Grid Solar Products Components
The off grid solar products in the SGR-12K20E kit represent a complete and carefully specified component set:
- 12000W Split Phase Inverter — the core power conversion unit

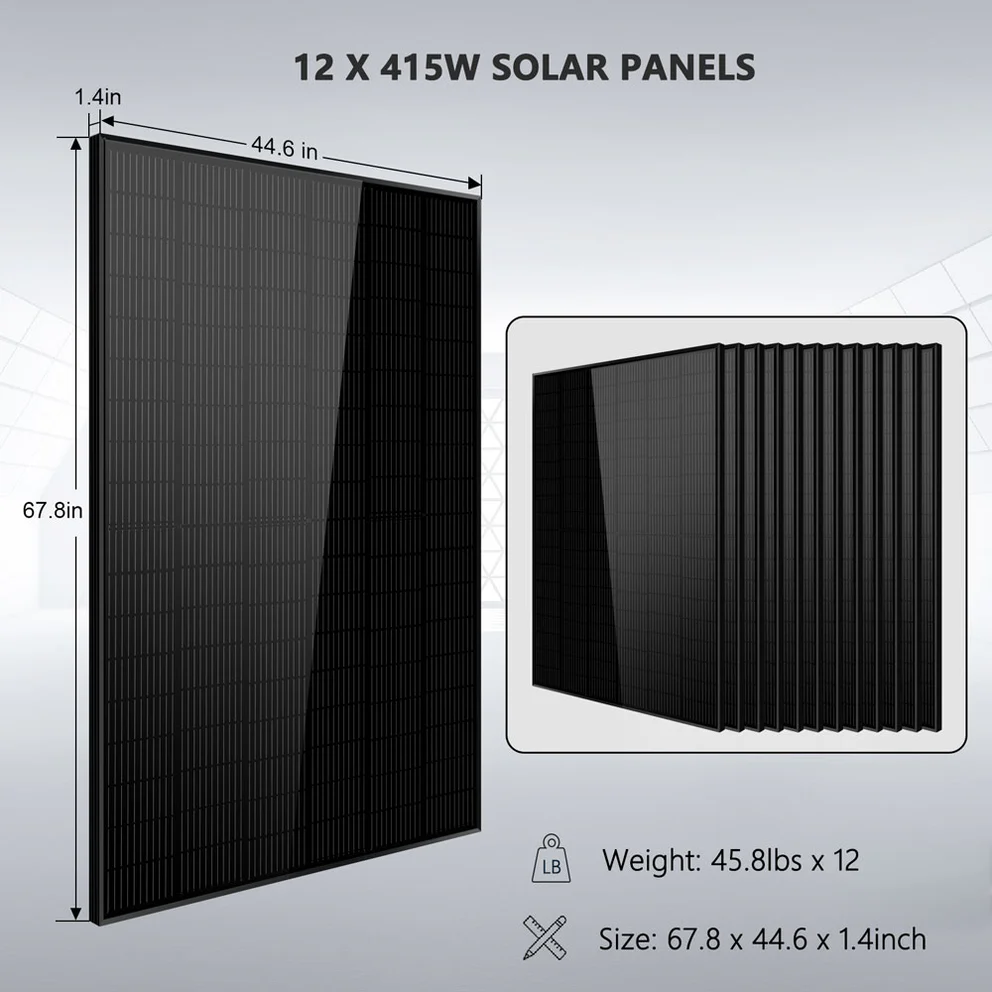

- 415W Monocrystalline Panels — high-efficiency certified solar input
- LiFePO4 Battery Bank — 25.6KWH of the safest and most cycle-stable lithium chemistry

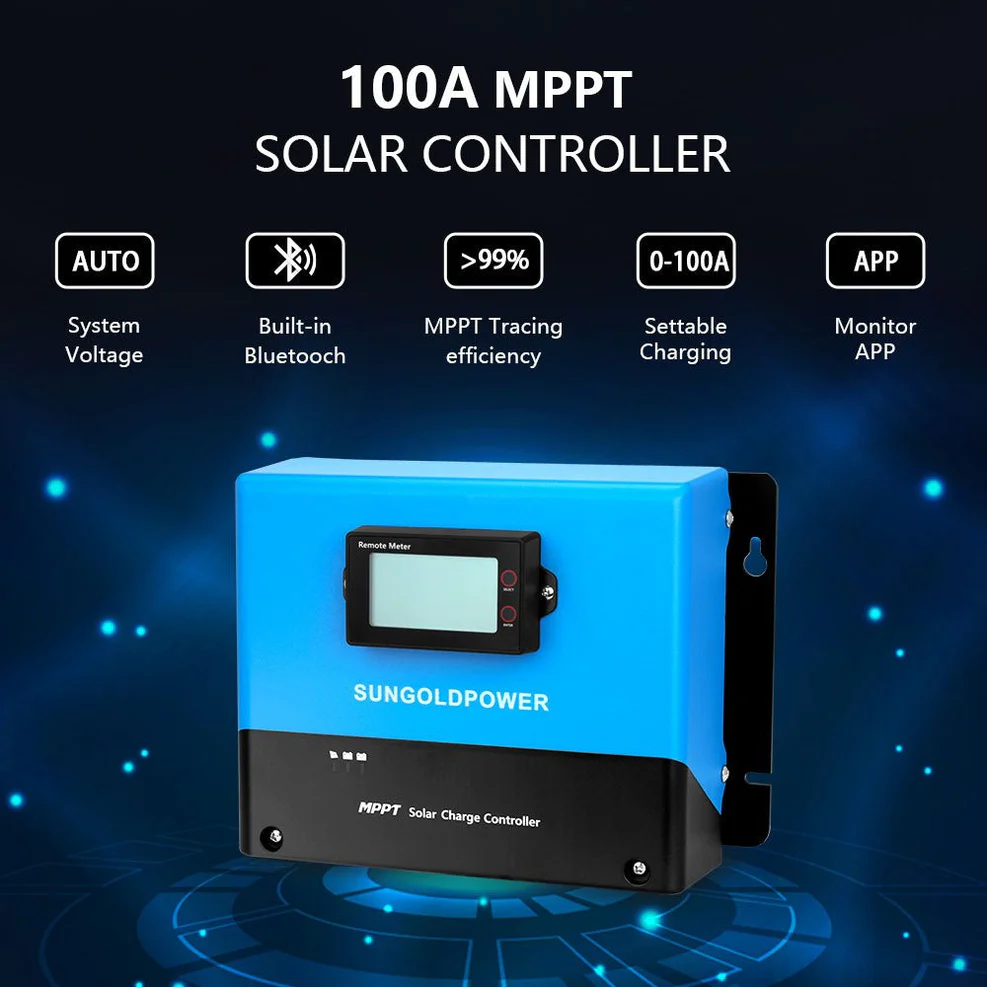

- Dual 100A MPPT Controllers — maximum power point tracking for optimised solar harvest across all light conditions
- Enclosed Battery Cabinet — organised safe storage for the 5-battery bank
- Complete Wiring Set — all cables connectors breakers and mounting hardware
Off Grid Supplies Included
The off grid supplies provided in the SGR-12K20E eliminate the need to source wiring and hardware separately:
- 2 sets x 50ft Solar Extension Cables
- 2 sets Cable Between Battery and MPPT Controller
- 12 sets Mounting Z-Brackets
- 1 x 400A DC Breaker
- 2 x 25A PV Breakers
- Enclosed Battery Cabinet
Browse our full Off-Grid Solar Power Systems and Solar Kits collections for more options.
What Is Included

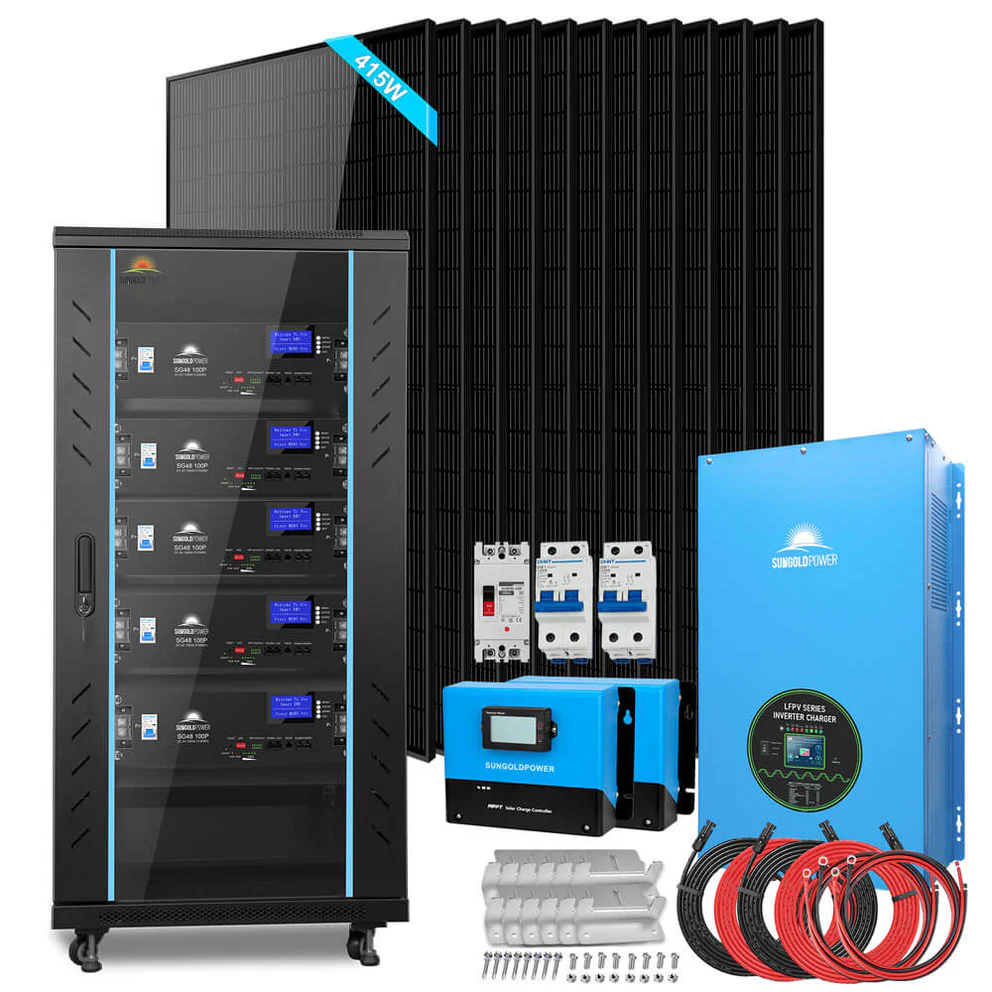

- 1 x 12000W 48VDC 120/240VAC Inverter
- 12 x 415W Monocrystalline Solar Panels
- 5 x 100AH 51.2V LiFePO4 Battery — 25.6KWH total
- 1 x Enclosed Battery Cabinet
- 2 x 100A MPPT Solar Charge Controllers
- 2 sets x 50ft Solar Extension Cables
- 2 sets Cable Between Battery and MPPT Controller
- 12 sets Mounting Z-Brackets
- 1 x 400A DC Breaker
- 2 x 25A PV Breaker
Frequently Asked Questions
Q: What are the off grid solar power systems SGR-12K20E? The off grid solar power systems SGR-12K20E is a complete 12KW split phase kit with 12 x 415W panels — 25.6KWH LiFePO4 storage — dual 100A MPPT controllers — producing approximately 20KWH daily — powerful enough for air conditioning well pumps and light commercial applications.
Q: What is the off grid solar inverter in this system? The off grid solar inverter is a 12000W 48VDC 120/240VAC split phase unit — delivering 12KW of continuous output compatible with standard North American electrical systems — handling high-load combinations including HVAC units and well pumps without load shedding.
Q: What off grid solar products are included? Off grid solar products in the SGR-12K20E include the 12KW split phase inverter — 12 x 415W monocrystalline panels — 25.6KWH LiFePO4 battery bank — dual 100A MPPT controllers — enclosed battery cabinet — extension cables MPPT battery cables mounting brackets and breakers.
Q: What off grid supplies are included in this kit? Off grid supplies included are 2 sets x 50ft extension cables — 2 sets MPPT battery cables — 12 sets mounting Z-brackets — 1 x 400A DC breaker — 2 x 25A PV breakers — and an enclosed battery cabinet — a complete matched wiring and hardware set.
Q: What daily energy production can I expect? The SGR-12K20E produces approximately 20KWH per day based on 4 hours of peak sunlight — sufficient to cover the daily energy needs of most full-sized residential off-grid applications when combined with the 25.6KWH battery bank overnight storage capacity.
