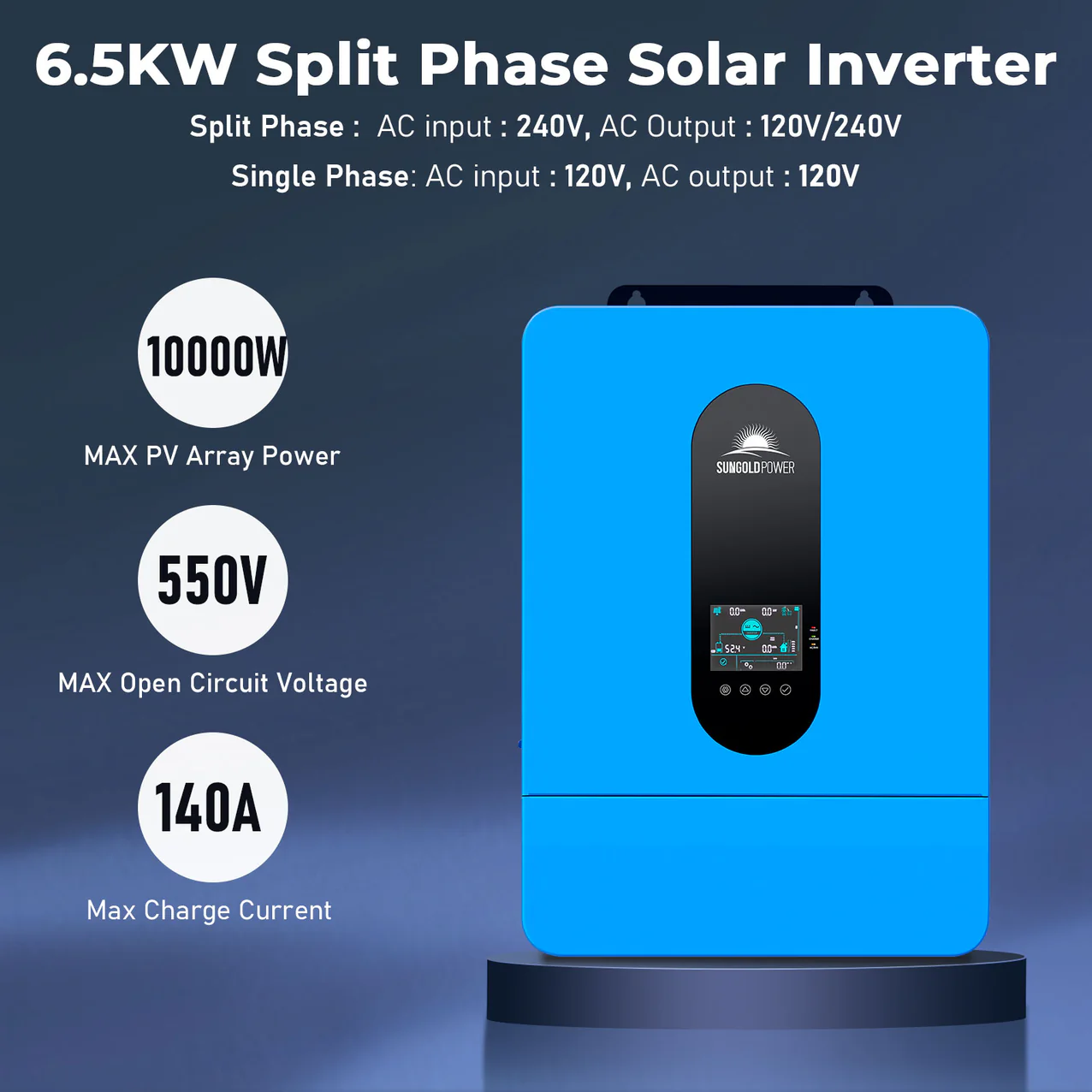

6.5kW 48V Split Phase Solar Inverter SPH6548P

Solar Off-Grid Inverter 6.5kW 48V — Authentic [Dual MPPT]

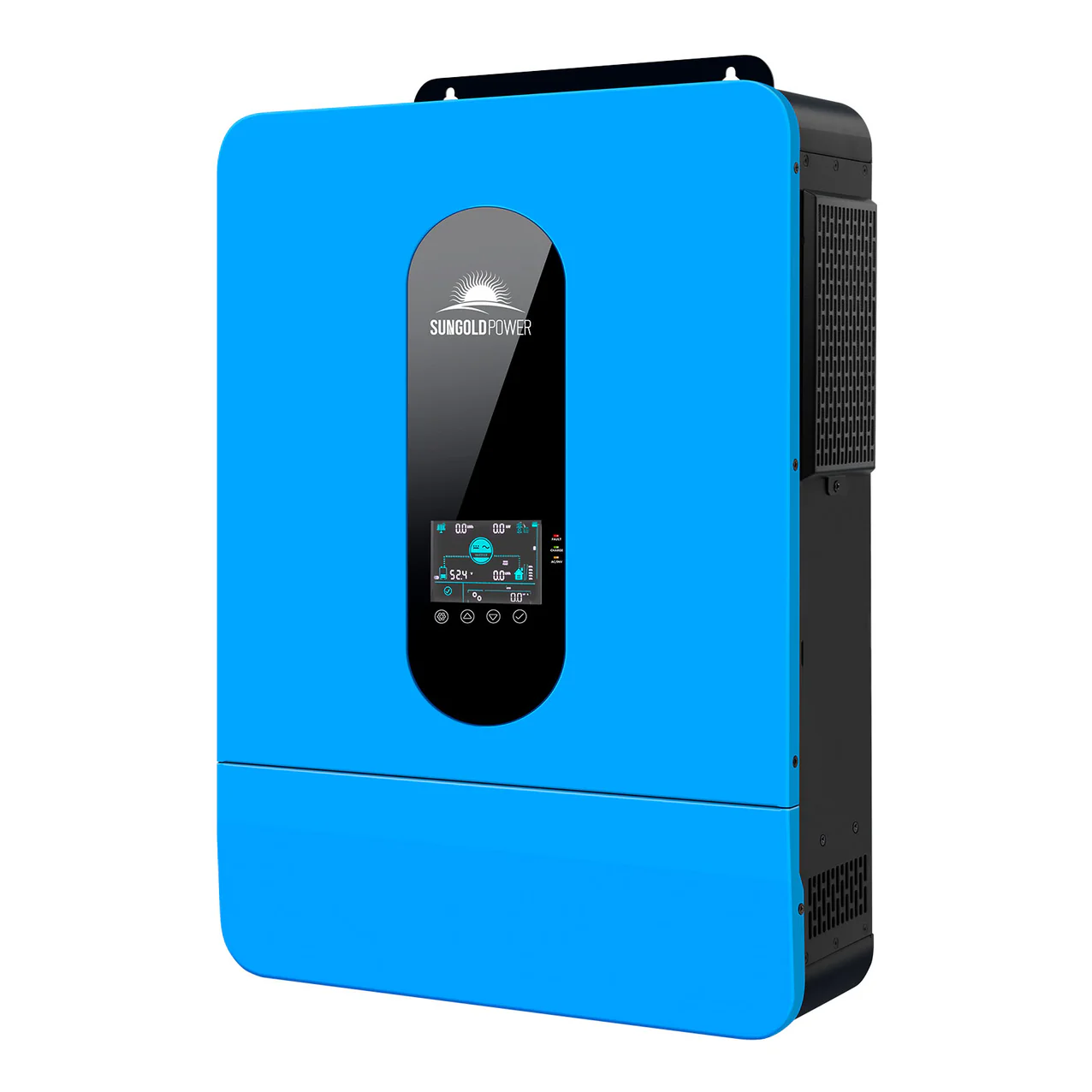

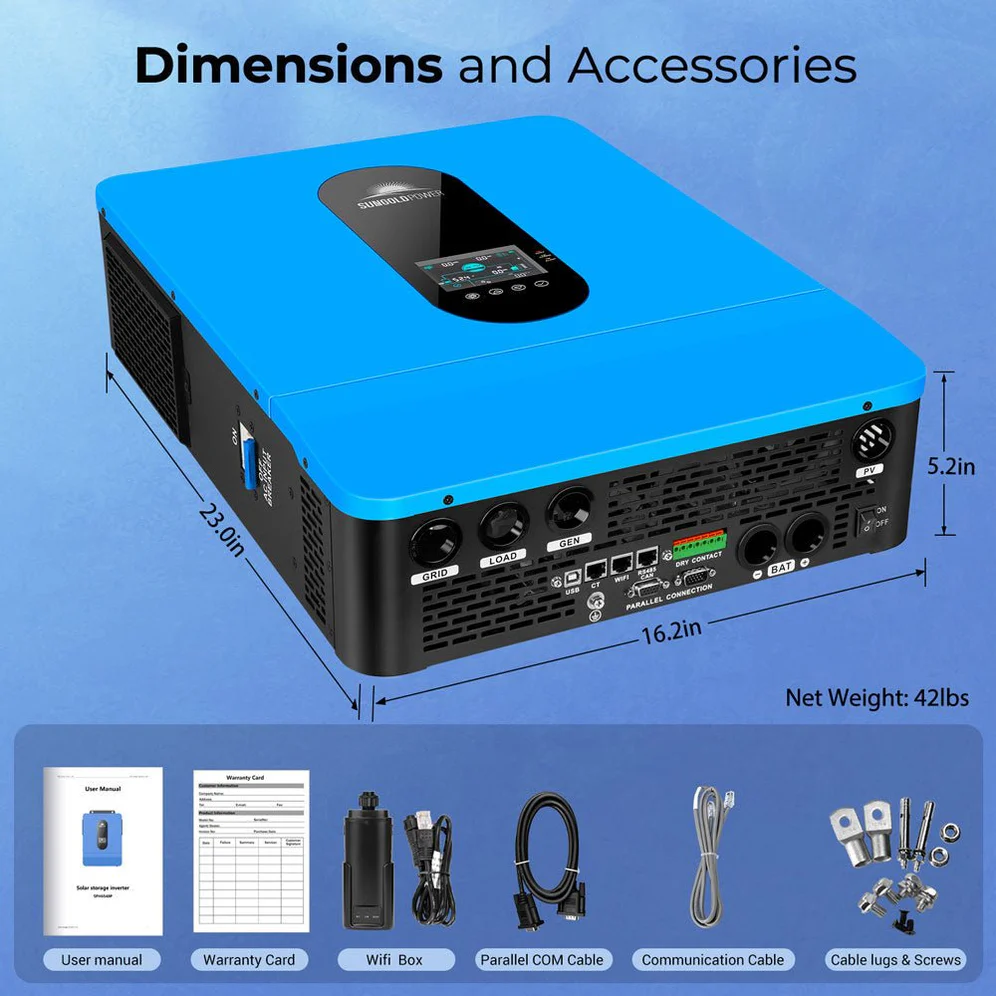

The solar off-grid inverter with dual MPPT trackers and genuine residential split-phase capability — the SPH6548P delivers 6,500W of continuous 120/240V AC output from a 48V battery bank, integrated dual-channel MPPT solar charging accepting up to 30,000W of combined PV input across two independent trackers, and 13,000VA of surge capacity in a 41.7 lb indoor unit. The inverter price position in the mid-range residential class, combined with the dual MPPT architecture and 6-unit parallel capability, makes this one of the most technically capable solar power inverters in the 6–7kW residential category — with certifications covering IEC 62109, UL1741 (via the broader SPH product family) and full IP20 indoor protection rating.

Table of Contents

1. Product Specifications
2. Dual MPPT Architecture — 30kW PV Capacity
3. 6.5kW Split-Phase — Full Residential Coverage
4. 80A Mains Charging and 140A Hybrid Mode
5. 48V Inverters — Battery Specifications
6. Parallel Capability — Up to 6 Units
7. Communication and Monitoring
8. FAQ

Product Specifications

Dual MPPT Architecture — 30kW PV Capacity

The SPH6548P’s dual MPPT configuration — two independent 550V DC channels — provides 25,000W + 5,000W of total PV array input capacity across two separate charge pathways. This is a significant specification relative to single-MPPT inverters in the same output class.

String independence: Two separate MPPT channels mean two solar strings are optimised independently. Panels on different roof orientations, at different tilt angles or affected by different shading profiles each operate at their own maximum power point — neither string is dragged down by the other’s performance limitations.

Higher total PV capacity: The combined 30kW PV input capacity across both channels vastly exceeds what a 6.5kW continuous output inverter consumes — enabling rapid battery charging from high-generation periods and maximum daily energy harvest from larger arrays paired with this unit.

550V DC open-circuit voltage: High open-circuit voltage limits enable longer series strings with fewer parallel branches — reducing combiner box complexity, DC cabling cost and installation time for larger arrays.

6.5kW Split-Phase — Full Residential Coverage

The 6,500W split-phase 120/240V output provides the full residential electrical profile — 240V appliances and standard 120V circuits from the same inverter output. The 13,000VA surge capacity for motor starting handles standard residential motor loads within the 2× continuous rating surge envelope.

At 6.5kW continuous, this solar off-grid inverter handles the realistic simultaneous load of a well-equipped mid-sized residential home:

• Central air conditioning (3–4 ton unit in running state, not startup)
• Refrigerator and freezer
• Water pump during operation
• Full lighting and entertainment
• Office equipment and charging

The 40A bypass overload current rating provides the pass-through capacity for loads during grid or generator bypass operation without inverter output limiting.

80A Mains Charging and 140A Hybrid Mode

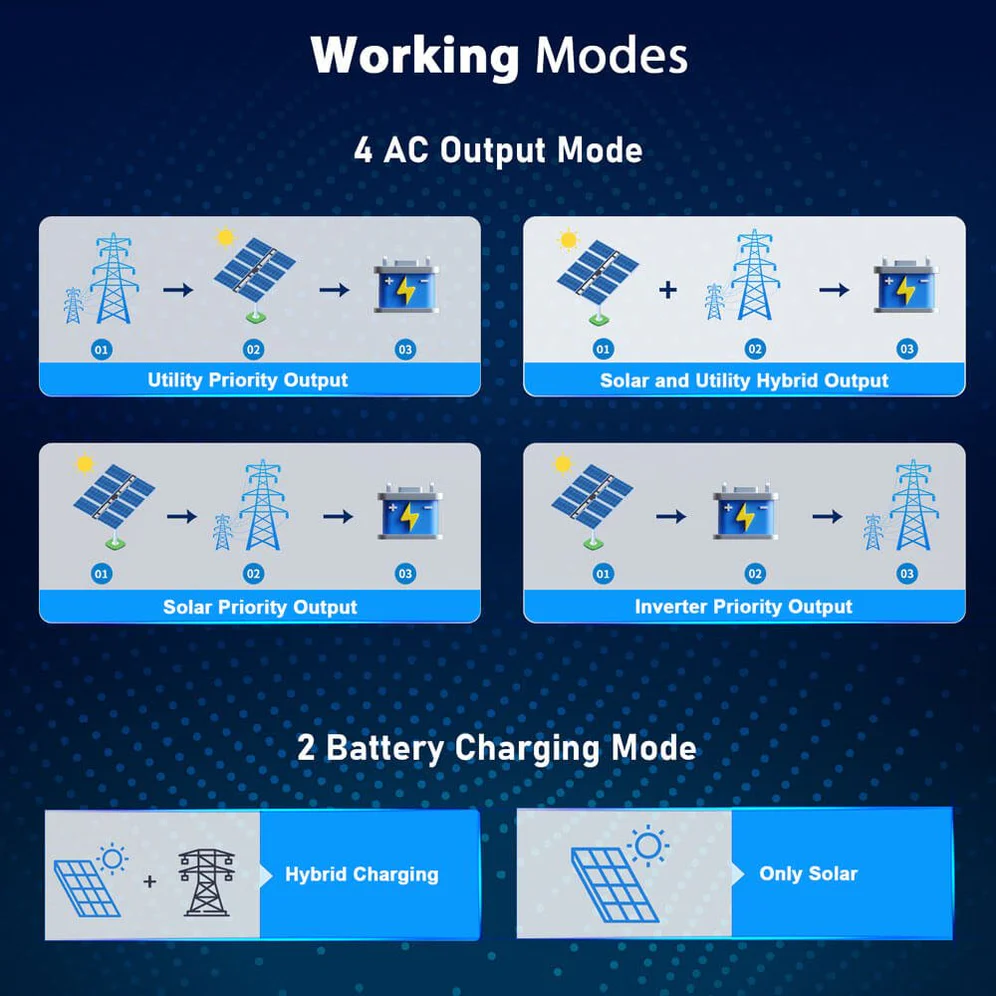

The SPH6548P charges the 48V battery bank at up to 80A from mains or generator AC input — delivering approximately 3,840W of AC charging power. In hybrid mode — simultaneous solar and AC charging — the combined maximum rises to 140A, or approximately 6,720W of total charging power. This hybrid charging rate enables rapid battery recovery when both solar generation and AC input are available simultaneously.

The 65–140V AC mains input range accommodates the generator output voltage variation that falls outside strict utility grid tolerance — essential for remote off-grid applications where generator output quality is variable.

48V Inverters — Battery Specifications

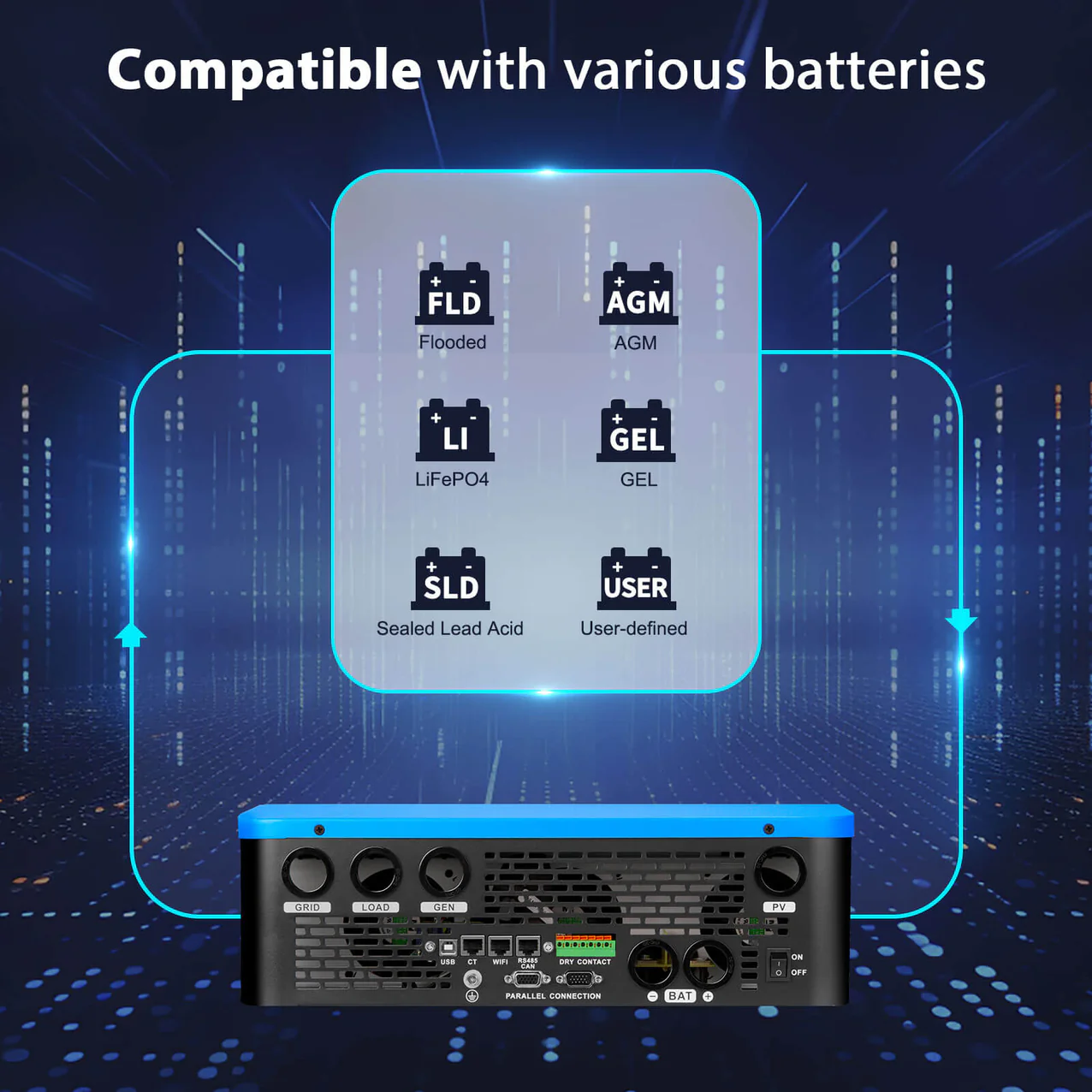

The 48v inverters classification at 48V DC nominal provides efficient battery-to-inverter power transfer at practical cable gauges. The 40–60V DC operating range accommodates the full discharge-to-charge voltage swing of both LiFePO4 and lead-acid battery chemistries at 48V nominal.

User-defined battery configuration supports non-standard battery types and custom voltage setpoints for specialised battery banks outside the standard chemistry classifications. This is relevant for retrofitting the SPH6548P into existing battery systems with established voltage parameters.

Parallel Capability — Up to 6 Units

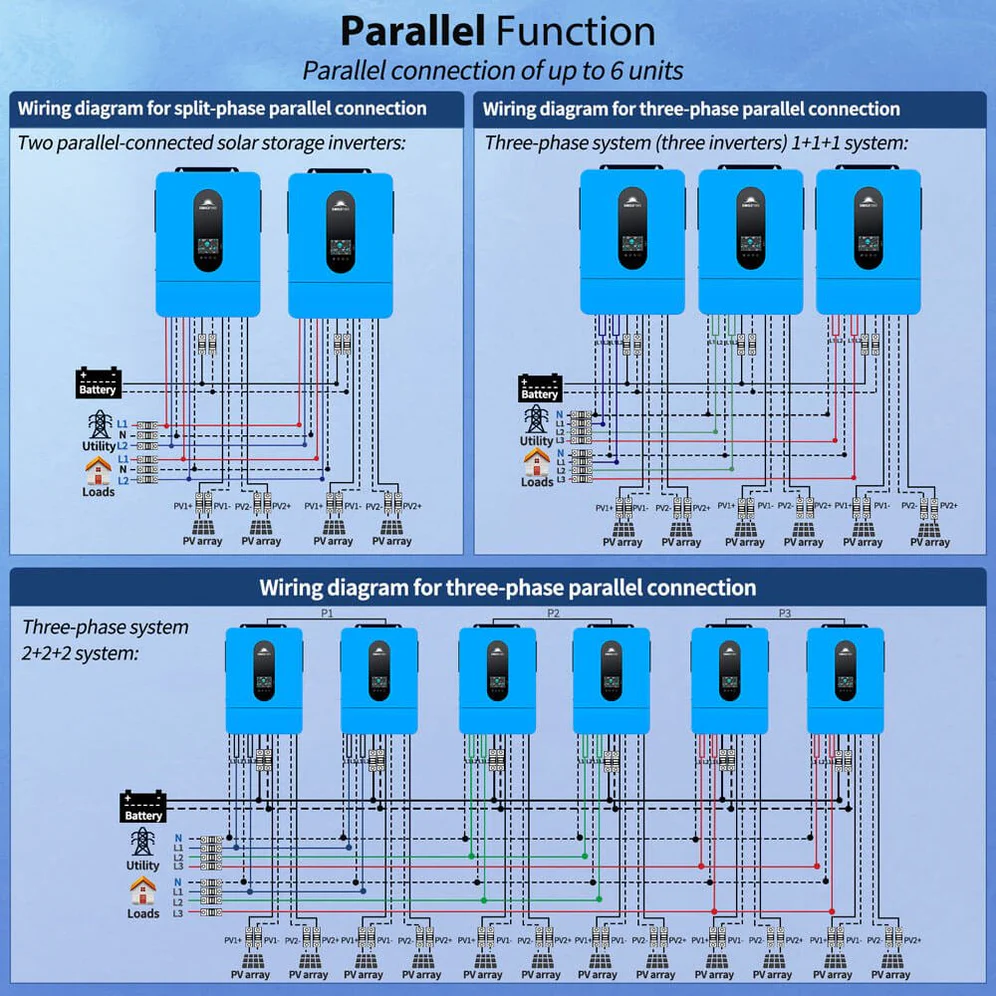

Six-unit parallel capacity enables output scaling from 6.5kW to 39kW in single-phase, split-phase or three-phase configurations. For installations that start at 6.5kW and grow — commercial premises, expanding farms, multi-structure properties — the parallel capability provides a defined expansion pathway without replacing the core inverter hardware.

Communication and Monitoring

Built-in RS485, CAN, USB and dry contact interfaces enable integration with building management systems, generator control panels and monitoring platforms. Optional Wi-Fi and GPRS modules enable remote monitoring via smartphone or web dashboard — relevant for solar panel with inverter installations at remote or unattended sites where physical access for status checking is impractical.

Explore additional solar off-grid inverter models in our Off-Grid Solar Inverters, Solar Kits and Off-Grid Power Systems categories.

FAQ

What is a solar off-grid inverter with dual MPPT and why does it matter? A solar off-grid inverter with dual MPPT has two independent Maximum Power Point Tracking charge channels — each optimising its connected solar string independently. This enables panels on different roof orientations or affected by different shading to each operate at their own maximum power point, preventing a lower-performing string from reducing the output of a higher-performing one. The SPH6548P’s dual 550V DC channels provide this independence for arrays up to 30kW combined.

Is the inverter price appropriate for the specification level of the SPH6548P? The inverter price for the SPH6548P at 6.5kW with dual 550V MPPT, 140A hybrid charging, 93% efficiency and 6-unit parallel capability represents strong value in the residential solar inverter class. Comparable dual-MPPT residential solar inverters from comparable manufacturers at equivalent specifications typically command higher pricing. The specification table above provides full technical comparison data.

What solar power inverters class does this unit belong to? The SPH6548P falls in the mid-range residential solar power inverters class — above basic single-MPPT off-grid inverters and below large commercial multi-unit systems. The dual MPPT, 6.5kW split-phase output and 6-unit parallel capability position it as a high-specification residential unit appropriate for properties with complex solar arrays, large battery banks and future expansion requirements.

What is the solar panel with inverter configuration for the SPH6548P? Solar panels connect to the two MPPT input channels — one string per channel, or both strings on the same channel if orientations are identical. Panels must be sized for the channel’s 550V open-circuit limit and 18A maximum input current. Standard 400–500W residential panels in strings of 4–6 panels in series are compatible with the 150–450V MPPT operating range on each channel.

What does 48V inverters mean for battery sizing? 48V inverters like the SPH6548P require a 48V nominal battery bank — typically four 12V batteries in series or two 24V batteries in series for lead-acid, or a single 48V LiFePO4 pack. The 40–60V operating range accommodates the full charge-discharge voltage swing of 48V battery banks. Battery bank capacity should be sized to cover overnight loads plus a cloudy-day reserve based on daily consumption.
