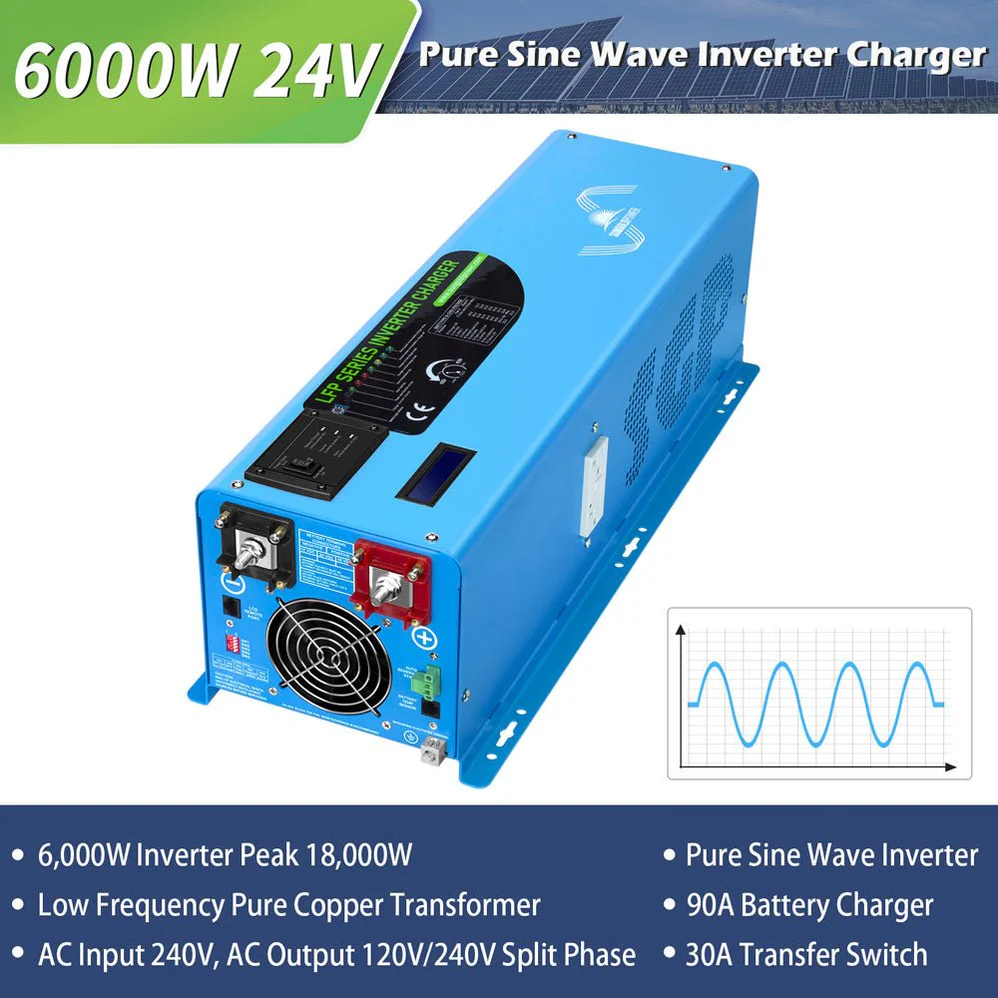

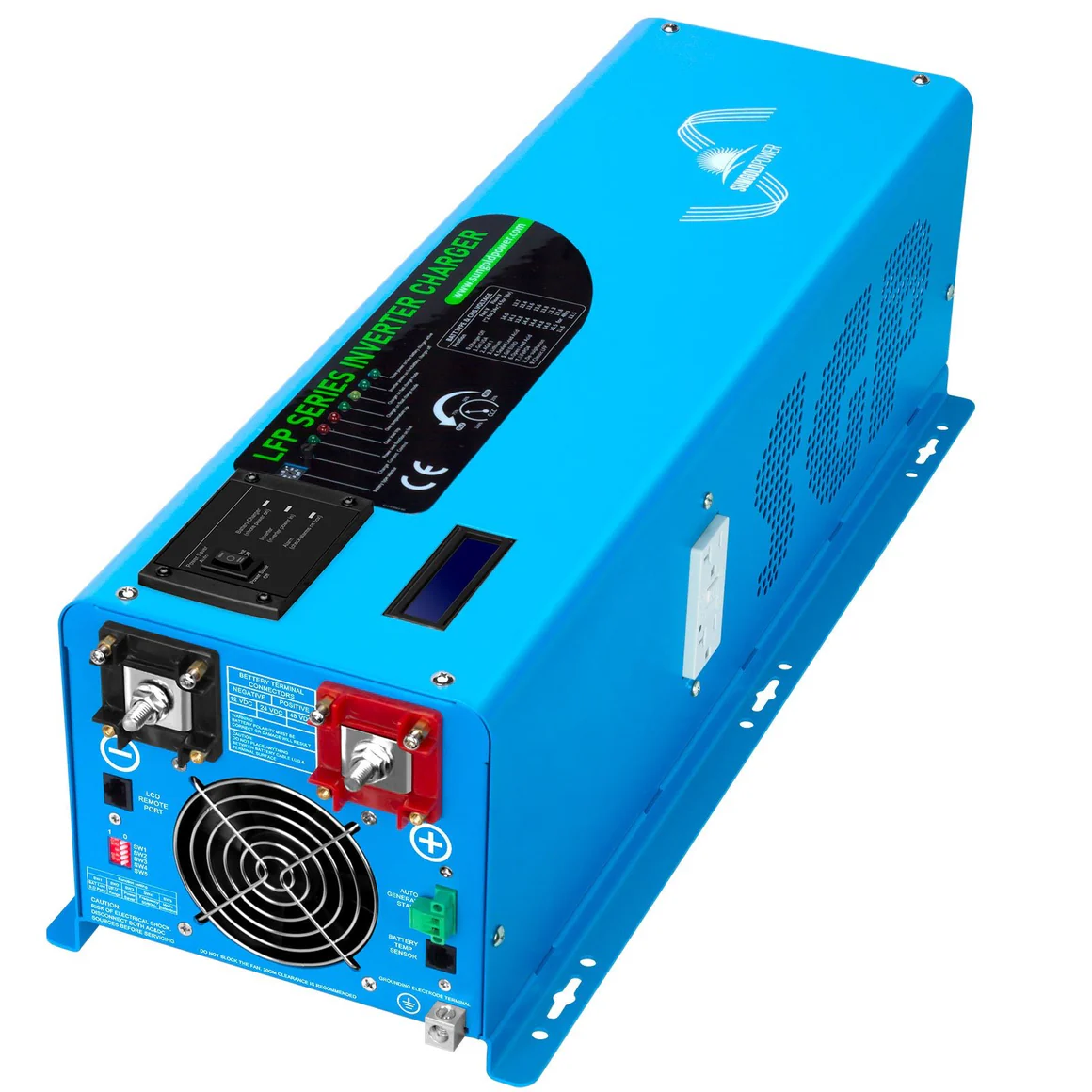

6000W DC 24V Split Phase Pure Sine Wave Inverter with Charger

Pure Sinusoidal Inverter 6000W 24V Split Phase 120/240V

The pure sinusoidal inverter for whole-home, business and RV applications requiring genuine split-phase 120/240V power — this 6000W 24V DC low-frequency inverter charger produces two legs of 110/120V combining to 220/230/240VAC, enabling simultaneous operation of 240V appliances and standard 120V circuits from a single 24V battery bank. With a built-in 90-amp battery charger and 10-millisecond automatic transfer switch, this three-in-one power inverter pure sine unit covers inverting, charging and automatic power switching in one professional-grade package — appropriate for small homes, business systems, RV installations and off-grid emergency backup applications with 240V panel requirements.

Table of Contents

1. Product Specifications
2. Split Phase 120/240V — What It Enables
3. 6000W Low-Frequency Architecture
4. 90-Amp Built-In Battery Charger
5. 10-Millisecond Transfer Switch
6. Pure Sinusoidal Output — The Performance Standard
7. Applications
8. FAQ

Product Specifications

Split Phase 120/240V — What It Enables

The split-phase output is the specification that makes this pure sinusoidal inverter appropriate for genuine residential and business applications — rather than the 120V-only single-phase output of standard RV and backup inverters.

Split-phase power produces two 110/120V legs that combine to 240V — the electrical configuration of standard North American homes and commercial buildings with 240V service panels. This configuration enables:

• 240V appliances: Electric water heaters, clothes dryers, well pumps, air conditioners, electric ovens, workshop equipment — all of which require 240V and cannot be powered by 120V-only inverters regardless of their wattage
• 120V circuits: Standard outlets, lighting and appliances from either leg of the split-phase output
• Panel compatibility: Direct connection to a standard 240V residential or commercial electrical panel — replacing grid or generator power for the entire property

For small homes, businesses and RV installations with 240V panels in place, this pure sine power inverter provides the only correct off-grid power solution — 120V-only alternatives simply cannot replace the full electrical service.

6000W Low-Frequency Architecture

Low-frequency inverter design — the architecture of this unit — uses a physical low-frequency transformer rather than the high-frequency switching topology of cheaper inverters. The practical consequences for users are significant:

Durability. The low-frequency transformer is the most robust inverter architecture available — handling sustained heavy loads, motor startup surges and irregular load profiles without the thermal stress that degrades high-frequency inverter transformers over time.

Surge handling. The 300% surge capacity — 18,000W for 20 seconds on the 6000W unit — is substantially higher than high-frequency inverters of equivalent continuous rating can achieve. This surge margin reliably starts large motor loads including well pumps, air conditioning compressors and industrial equipment.

Pure sine wave quality. Low-frequency architecture produces a cleaner pure sinusoidal inverter output waveform with lower total harmonic distortion than high-frequency designs — relevant for sensitive electronics and precision equipment.

90-Amp Built-In Battery Charger

The integrated 90-amp battery charger is one of the most capable charging systems available in the 6000W inverter charger class — enabling rapid recharging of large 24V battery banks when shore power or generator power is available.

At 90 amps charging into a 24V system, the charger delivers approximately 2,160 watts of charging power — fast enough to recover a significantly depleted battery bank in a fraction of the time a lower-rate charger would require. This charging capacity is directly relevant to pure sine wave inverter and charger applications where battery recovery time between generator runs or solar generation periods affects the practicality of the overall off-grid system.

10-Millisecond Transfer Switch

The automatic transfer switch transitions between 240V shore/generator power and battery/inverter power within 10 milliseconds — maintaining continuity for connected loads during power source transitions. This transfer speed prevents most consumer electronics and appliances from experiencing a detectable power interruption during the switch.

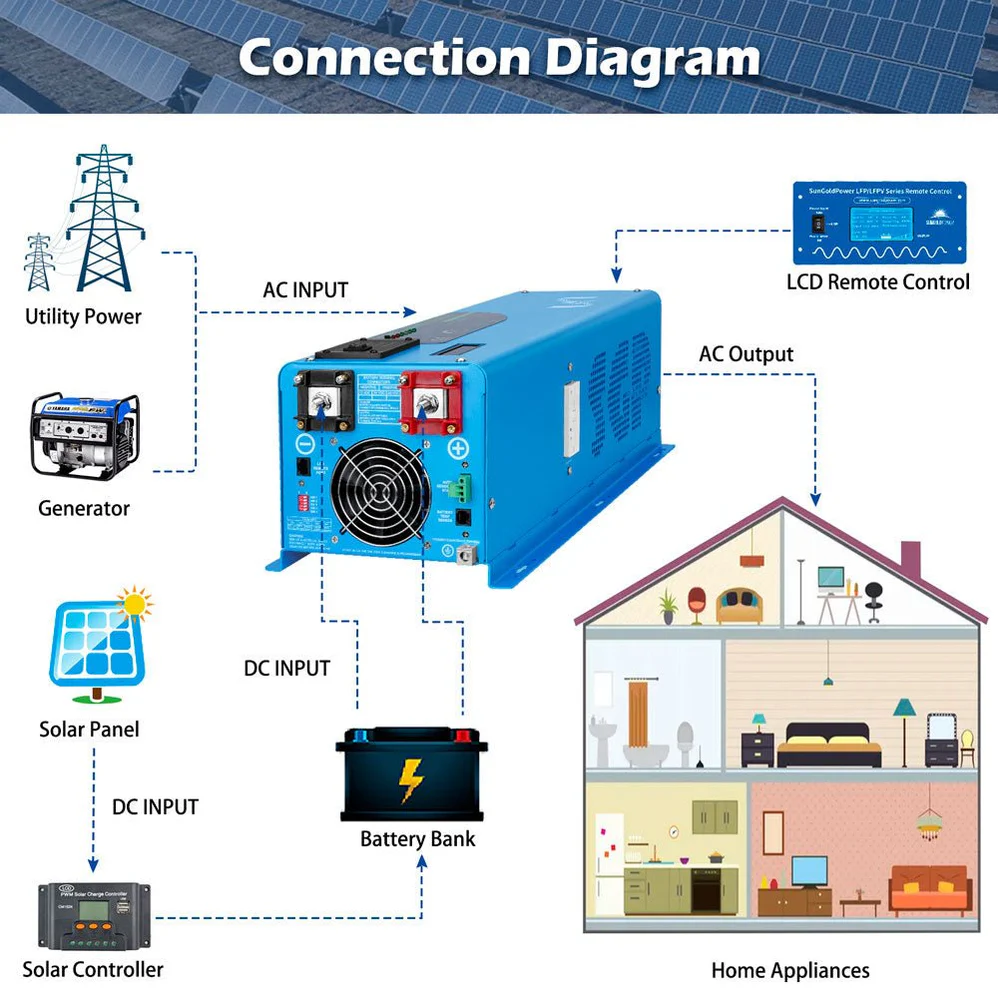

When 240V input power is available, the unit passes power to the electrical panel while simultaneously charging batteries at 90 amps. When input power fails, the transfer switch activates the inverter within 10ms — keeping the home or business powered from the battery bank without manual intervention.

Pure Sinusoidal Output — The Performance Standard

A pure sinusoidal inverter produces AC output that is mathematically identical to utility grid power — the same smooth sinusoidal waveform at 50 or 60Hz that every electrical device, appliance and piece of equipment is designed to operate from. This specification matters for the complete electrical load of a home or business in a way that partial or limited appliance lists cannot fully capture.

Every appliance across the entire 240V electrical panel — from the refrigerator’s inverter compressor to the HVAC system’s variable speed fan to the workshop’s CNC equipment — operates at rated efficiency and design specification from pure sinusoidal inverter output. No derating, no heat generation, no interference, no damage risk from harmonic distortion.

Applications

• Small homes and cottages as the primary off-grid or backup power source
• Business backup power for 240V commercial electrical panels
• Large RV and motorhome systems with 240V appliances and panels
• Trailer and marine installations requiring split-phase 240V
• Off-grid residential systems paired with solar and battery storage

Explore additional split-phase inverter models in our Inverters, Solar Kits and Off-Grid Power Systems categories.

FAQ

What is a pure sinusoidal inverter? A pure sinusoidal inverter is an inverter that produces AC output with a smooth sinusoidal waveform identical to utility grid power — also described as pure sine wave output. This output operates every type of electrical equipment correctly and safely, including sensitive electronics, motor-driven appliances and precision medical equipment. This 6000W 24V model also includes split-phase 120/240V output, a 90-amp battery charger and a 10-millisecond automatic transfer switch.

What is split phase output and why does this pure sinusoidal inverter have it? Split phase output produces two legs of 110/120V AC that combine to 240V — matching the electrical configuration of standard North American homes and commercial buildings with 240V service panels. This pure sinusoidal inverter includes split-phase output specifically to enable connection to 240V residential and commercial electrical panels — powering every circuit and appliance in the building, including 240V appliances that 120V-only inverters cannot serve.

What is the power inverter pure sine advantage over modified sine wave? Power inverter pure sine output is mathematically identical to grid power, operating all equipment at rated efficiency without harmonic distortion. Modified sine wave inverters produce a stepped, approximated waveform that creates heat in motors, causes interference in electronics and can damage sensitive equipment over time. For a whole-home or business backup application where the inverter powers every appliance across a 240V panel, pure sine wave is the only appropriate specification.

What is the 90-amp charger benefit in this unit? The 90-amp built-in battery charger delivers approximately 2,160 watts of charging power to the 24V battery bank — enabling rapid recovery of depleted batteries when shore power or generator power is available. High charging amperage directly reduces generator runtime requirements and shortens the battery recovery period between solar generation periods in off-grid installations.

Is this pure sinusoidal inverter suitable for whole-home backup? Yes — this 6000W 24V split-phase pure sinusoidal inverter is specifically designed for whole-home backup applications in small homes, cottages and business locations with 240V panels. The split-phase 120/240V output, 90-amp battery charger and 10-millisecond transfer switch provide the complete functionality required for seamless whole-home backup from a 24V battery bank.
