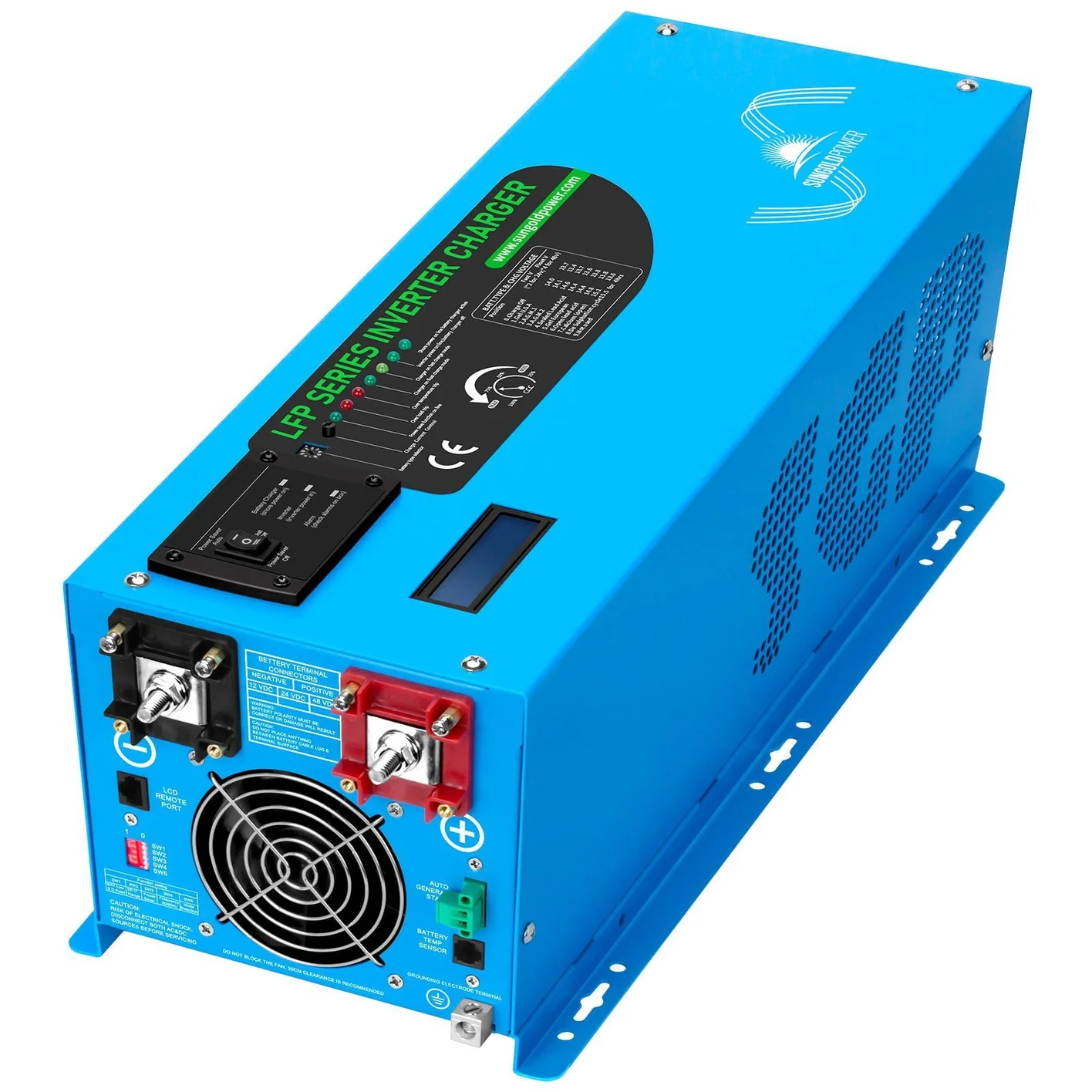

3000W DC 24V Pure Sine Wave Inverter with Charger

Pure Sine Power Inverter 3000W 24V — With Charger Complete System

The pure sine power inverter for 24V battery systems in RV, marine, truck and off-grid cabin applications — this 3000W low-frequency inverter charger converts 24V DC to 120V AC pure sine wave output with a built-in battery charger and automatic transfer switch in one integrated unit. With 300% surge capacity for 20 seconds — 9,000W of peak power for motor and tool startup — this pure sine wave inverter and charger combination handles the realistic simultaneous load of a well-equipped motorhome, travel trailer or remote cabin including air conditioning (smaller units), refrigerator, power tools, lighting and standard appliances from a 24V battery bank.

Table of Contents

1. Product Specifications
2. 24V DC — The 3000W Standard
3. 300% Surge for 20 Seconds
4. Built-In Battery Charger
5. Automatic Transfer Switch
6. Pure Sine Wave Output
7. RV, Marine and Off-Grid Applications
8. FAQ

Product Specifications

24V DC — The 3000W Standard

The 24V DC input voltage of this pure sine power inverter distinguishes it from the 12V configurations in the range — and for 3000W continuous output, 24V is the more electrically appropriate specification.

At 3000W continuous output from 24V, the DC current draw from the battery bank is approximately 125 amps — a manageable cable and connection specification with practical 2/0 or 4/0 AWG DC wiring. The same 3000W from a 12V system would require approximately 250 amps — demanding larger cables, heavier connections and more careful wiring design to manage the increased current safely.

For RV and marine applications where 24V battery banks are standard — and for off-grid installations where a 24V architecture has been established — this 24V 3000W pure sine wave inverter is the appropriate specification: correct voltage matching eliminates the need for any battery bank reconfiguration.

300% Surge for 20 Seconds

The 300% surge capacity — 9,000W for 20 seconds — is the specification that makes this pure sinusoidal inverter reliable for motor-driven equipment starting alongside continuous loads.

In a 3000W RV or cabin installation, the simultaneous load scenario most likely to trip an undersurged inverter is the air conditioner compressor starting while the refrigerator, TV and lighting are already running. The combined running load may be 1,500–2,000W, with the air conditioner adding 2,000–3,000W of startup surge momentarily. A 3000W inverter with only 100–150% surge capacity may trip in this scenario. The 300% surge — 9,000W available for startup — provides substantial margin above the most demanding realistic simultaneous surge scenario.

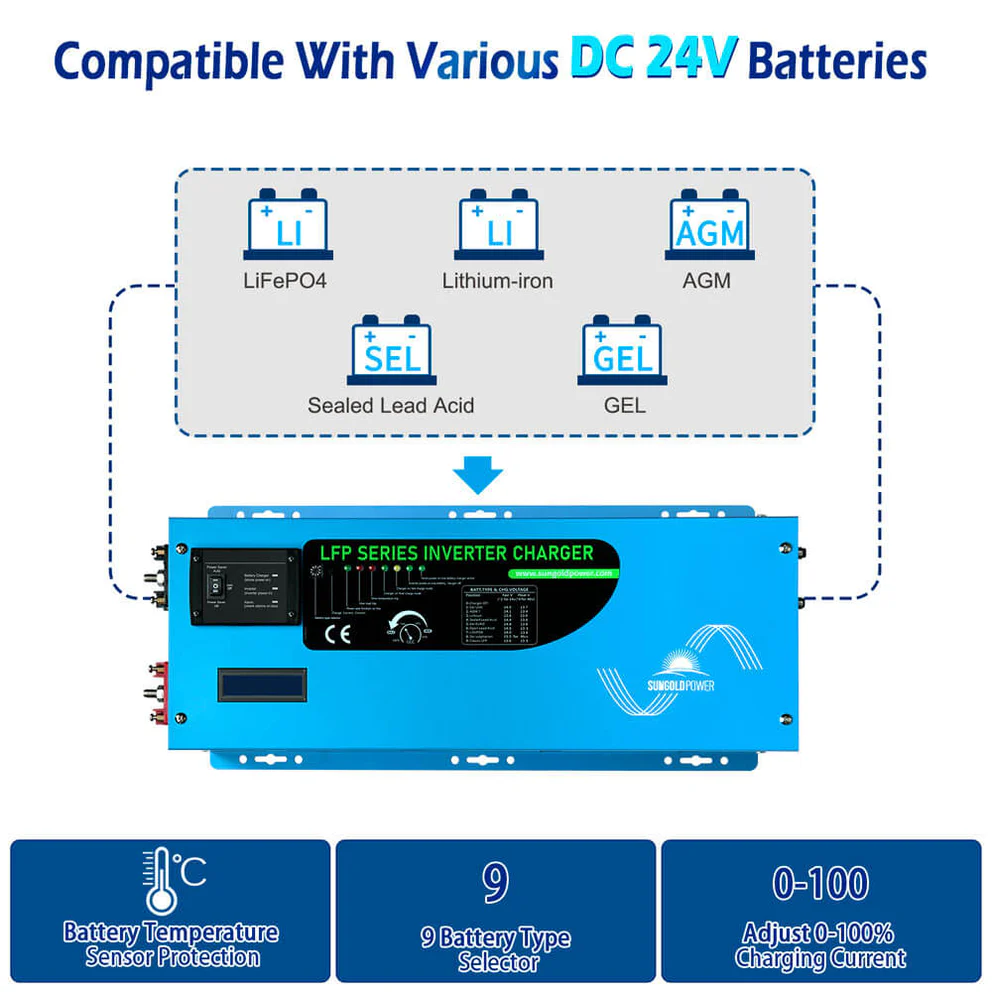

Built-In Battery Charger

The integrated battery charger recharges the 24V battery bank when connected to 120V AC shore power or generator output. This eliminates the separate battery charger installation required when inverter-only units are used — reducing component count, wiring complexity and installation space.

The pure sine wave inverter and charger combination manages battery charging automatically — activating on shore connection, monitoring battery voltage continuously and terminating at full charge. For RV applications where shore power connection is variable and battery recovery between boondocking sessions is a practical daily management task, the integrated charger simplifies electrical system management significantly.

Automatic Transfer Switch

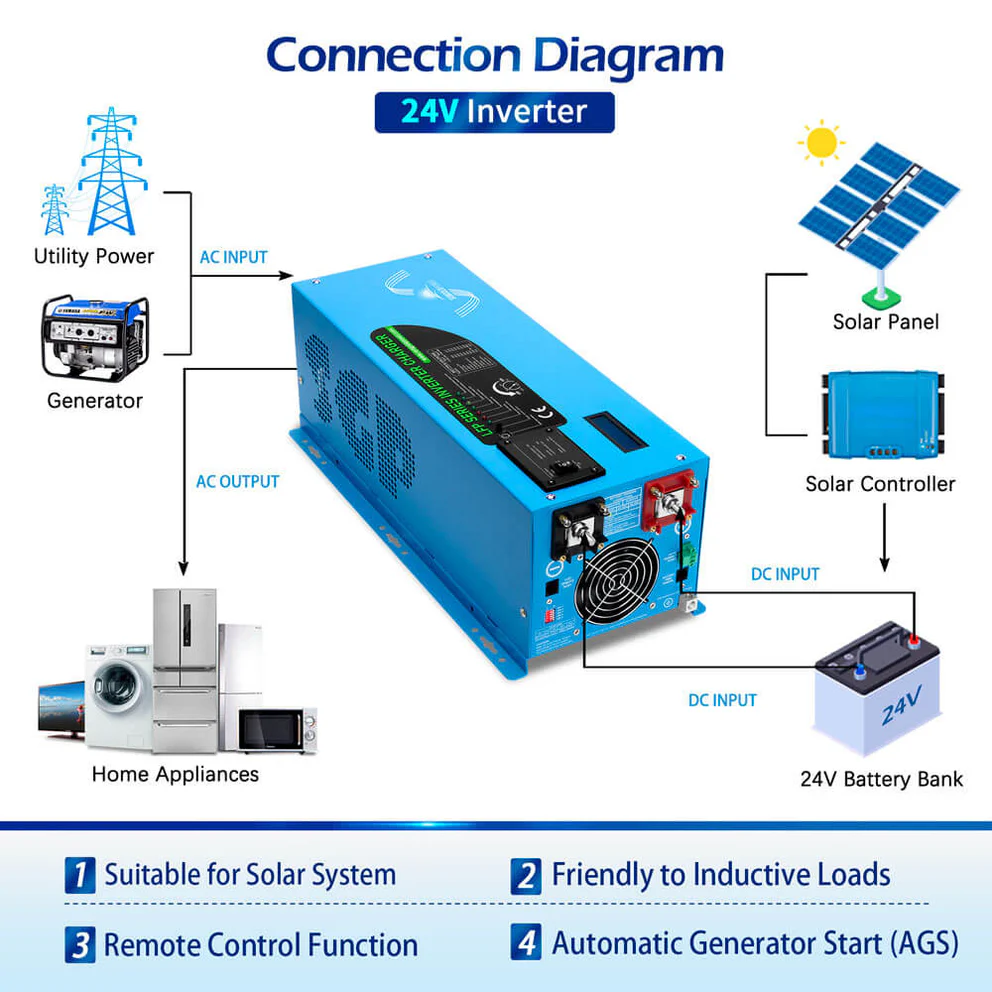

The automatic transfer switch transitions between 120V shore/generator power and battery/inverter power within 10 milliseconds. When shore power is connected, the unit passes AC through to loads while simultaneously charging the 24V battery bank. When shore power fails or is disconnected, the transfer switch activates the inverter within 10ms — maintaining continuity for connected loads.

For RV applications where shore power connection quality is variable — temporary power losses, connector wiggle, campsite generator shutdowns — the 10ms automatic transfer maintains operation of refrigerators, electronics and appliances without the manual switching and power interruption that separate inverter systems require.

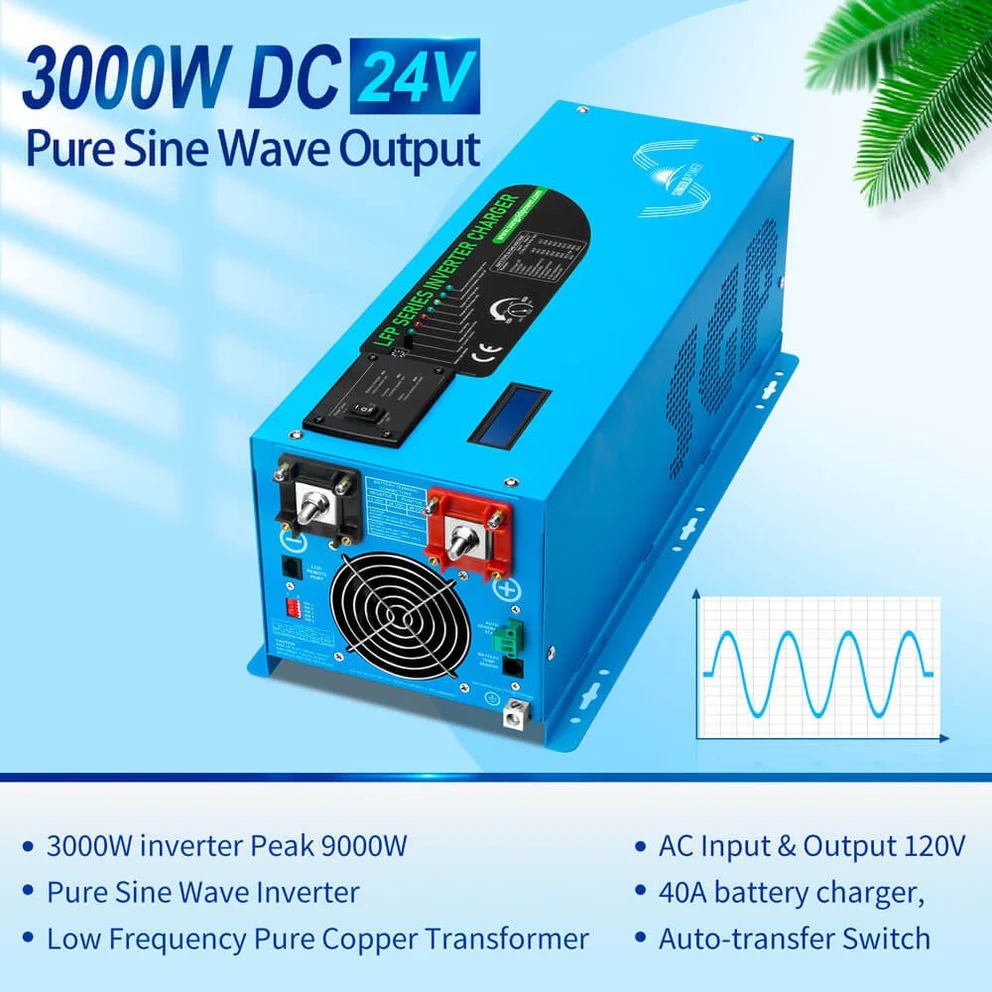

Pure Sine Wave Output

This pure sine power inverter produces smooth sinusoidal 120V AC output identical to utility grid power. All RV and cabin equipment operates at design specification from pure sine wave output — modern inverter-compressor refrigerators, variable speed HVAC fan motors, CPAP machines, entertainment systems, LED televisions, laptop computers and sensitive electronics all perform correctly from pure sine wave output in ways that modified sine wave inverters cannot reliably guarantee.

The 50/60Hz frequency selection via SW4 makes this inverter appropriate for both North American 60Hz equipment and international 50Hz applications.

RV, Marine and Off-Grid Applications

This pure sine power inverter is the standard specification for:

• Class B and Class C motorhomes with 24V electrical systems
• Travel trailers with 24V battery banks
• Marine and liveaboard vessels at 24V
• Truck sleeper cabs with 24V DC systems
• Off-grid cabins powered by 24V battery banks
• Emergency backup from 24V automotive or marine battery systems

Explore the complete inverter charger range in our Inverters, Solar Kits and Off-Grid Power Systems categories.

FAQ

What is a pure sine power inverter at 3000W 24V? A pure sine power inverter at 3000W 24V converts 24V DC battery power to 3,000 watts of 120V pure sine wave AC electricity — providing utility-quality power from a 24V battery bank. This model includes a built-in battery charger and automatic transfer switch, making it a complete three-in-one inverter, charger and transfer switch system for RV, marine and off-grid applications.

Why choose 24V over 12V for a 3000W pure sine wave inverter? At 3000W, a 24V system draws approximately 125 amps DC versus approximately 250 amps from a 12V system — halving the cable current requirements and reducing the electrical losses and wiring complexity of the DC side installation. For installations where 24V battery banks are established or where the higher 3000W output is required from a clean 24V architecture, this pure sine wave inverter is the appropriate specification.

What is a pure sine wave inverter and charger and what does it include? A pure sine wave inverter and charger combines three functions in one unit: a pure sine wave DC-to-AC inverter for powering loads from batteries, an AC-to-DC battery charger for recharging batteries from shore or generator power and an automatic transfer switch for managing the transition between power sources. This 3000W 24V unit includes all three in a single installed package requiring one DC and one AC wiring connection.

What is the pure sinusoidal inverter surge advantage for RV applications? The pure sinusoidal inverter 300% surge capacity — 9,000W for 20 seconds — enables reliable starting of air conditioning compressors, refrigerators and power tools simultaneously with existing running loads. The 20-second surge duration provides additional margin for hard-start motors. For RV applications where simultaneous appliance operation is routine, this surge specification prevents the nuisance tripping that plagues undersurged inverters.

Is this 3000W 24V inverter appropriate for a CPAP machine? Yes — CPAP and BiPAP machines require pure sine wave input for correct operation. Most CPAP devices specify pure sine wave AC input and may not function correctly, may produce noise or may be damaged by modified sine wave inverters. This pure sine power inverter at 3000W produces utility-quality pure sine wave 120V AC output — the appropriate specification for CPAP machines in RV and off-grid applications.
