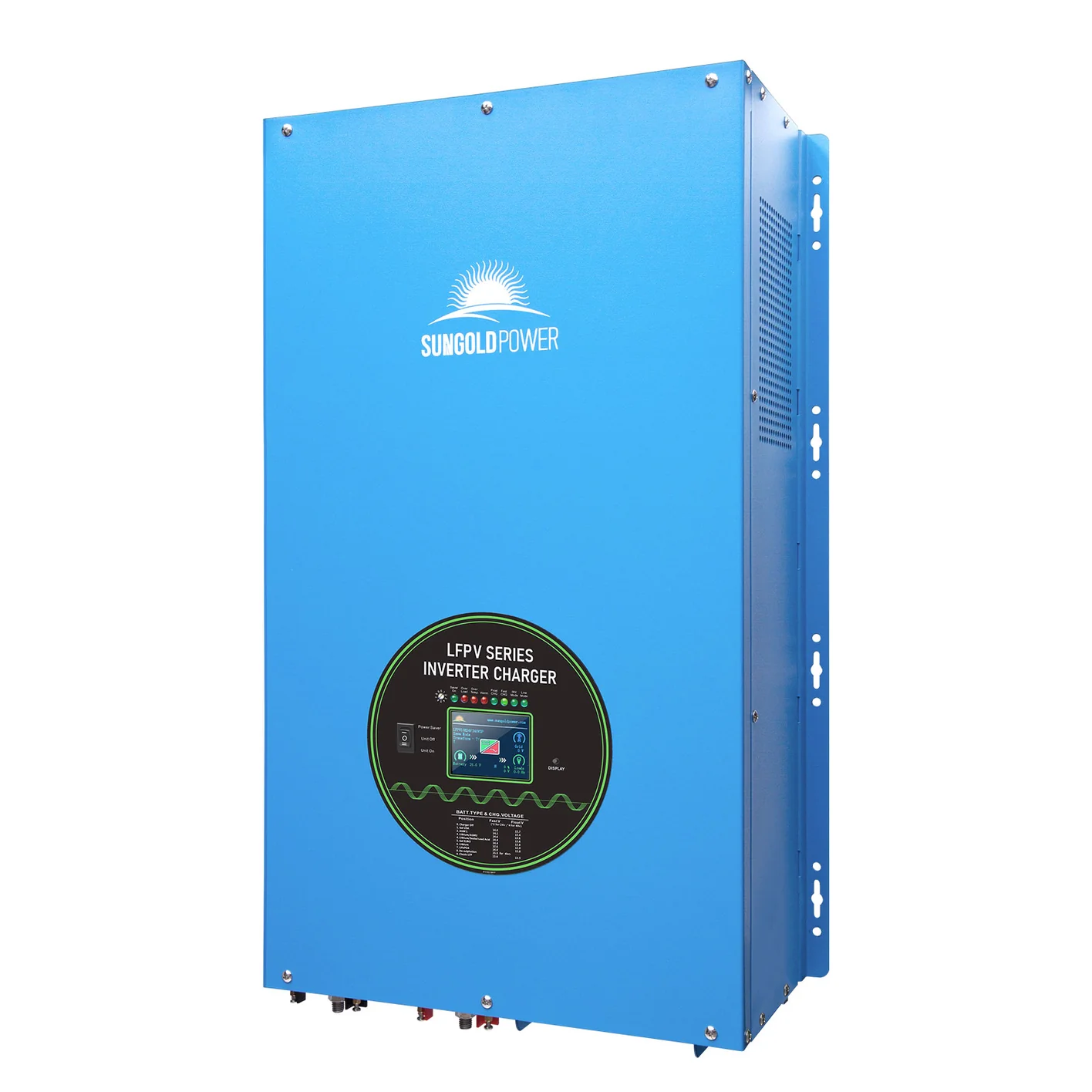

15000W 48V Split Phase Pure Sine Wave Inverter Charger

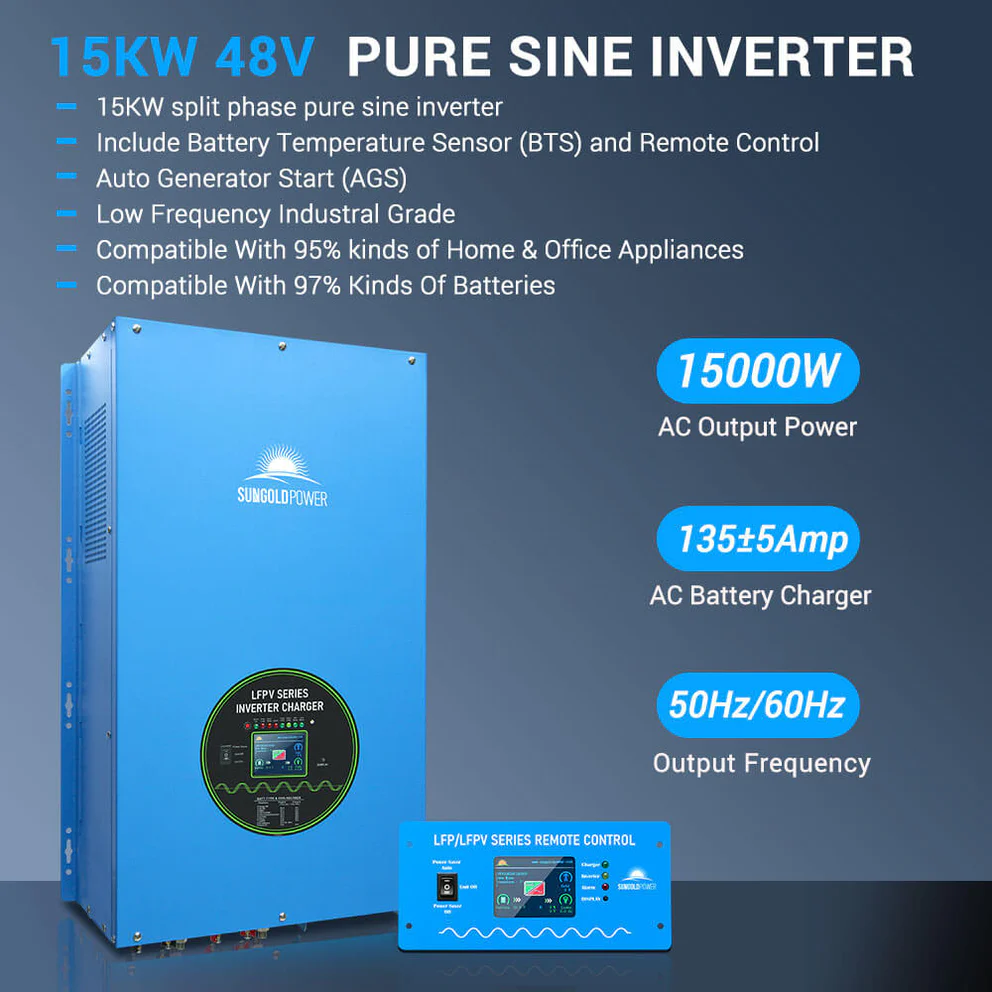

Power Inverter Pure Sine Wave 15kW 48V — Split Phase Complete System

The power inverter pure sine wave specification at 15kW represents the high end of residential and the beginning of light commercial off-grid power — this 48V split-phase inverter charger delivers 15,000W of continuous 120/240V output with a 45,000W surge rating (300%), a 100-amp battery charger, auto generator start, battery temperature sensing and remote control. Where the 12kW configuration covers large homes at their typical load profile, the pure sinusoidal inverter at 15kW provides the additional continuous headroom for properties with multiple simultaneous high-demand loads — large estate properties, agricultural facilities with electrical processing equipment and commercial premises where peak demand regularly exceeds 12kW.

Table of Contents

1. Product Specifications
2. 15kW — The Light Commercial Standard
3. 45kW Surge Rating
4. 100-Amp Battery Charger with PFC
5. Auto Generator Start
6. Pure Sine Wave Output at 15kW
7. Applications
8. FAQ

Product Specifications

DC Input Specifications:

Charger Specifications:

15kW — The Light Commercial Standard

At 15,000W of continuous split-phase 120/240V output, this power inverter pure sine wave specification bridges the gap between large residential and light commercial power requirements. The practical load profile this inverter covers simultaneously:

• Multiple central air conditioning zones (residential or commercial)
• Well pump and water treatment equipment
• Commercial kitchen equipment (refrigerators, prep equipment, lighting)
• Workshop and manufacturing equipment up to 15kW total simultaneous draw
• Full office and retail facility electrical loads
• Agricultural cold storage, irrigation controls and processing equipment

The 15kW standalone specification at $3,350 (before adjustment) occupies a different price point from the multi-configuration 12/15/18kW unit — making it the appropriate direct purchase for buyers who specifically require 15kW without the additional configuration options of the multi-unit product.

45kW Surge Rating

The 45,000W surge rating — 300% of the 15,000W continuous rating — provides the startup margin required for the largest single-phase motor loads encountered in residential and light commercial applications. At 45kW surge, this pure sinusoidal inverter starts HVAC systems, industrial compressors, water pumps and processing equipment that smaller surge-rated inverters cannot reliably start regardless of their continuous output rating.

The 20-second surge duration provides additional margin for hard-start compressors and motors that take longer than standard to reach running speed — a specification that matters for older equipment and long-pipe well pump installations where startup time is extended.

100-Amp Battery Charger with PFC

The 100-amp charger delivers 4,800 watts of charging power into the 48V battery bank — recovering large battery banks from significant depletion efficiently when generator or shore power is available. The Power Factor Correction (PFC) circuit improves charger efficiency and reduces the reactive power demand from the generator or shore supply — enabling the use of smaller generator capacity than non-PFC chargers of equivalent output require.

The 0–100% selectable charge rate allows optimisation for different battery bank sizes and generator capacity constraints — full 100-amp charging for maximum recovery speed when generator capacity permits, reduced rate when running the generator near its output limit with simultaneous loads.

Auto Generator Start

Auto generator start in this power inverter pure sine wave unit includes the same 15-second AC recovery delay as other models in the range — confirming stable generator output before transferring loads from battery to the incoming AC supply. This delay protects connected equipment from generator output fluctuations during startup before the alternator reaches stable speed and output.

Pure Sine Wave Output at 15kW

At 15kW of continuous pure sinusoidal inverter output — 15,000 watts of smooth sinusoidal 120/240V AC simultaneously — this unit replaces utility grid power for large properties without any reduction in appliance performance, equipment operation or electrical system functionality.

The same pure sine wave quality that makes a 2000W inverter appropriate for sensitive electronics scales directly to 15kW. Every appliance across the 240V electrical panel — inverter compressor refrigerators, variable speed HVAC systems, medical equipment, audio systems, CNC equipment and lighting — operates at design specification from this output.

Applications

• Large residential estates requiring 15kW continuous off-grid coverage
• Light commercial operations — retail, food service, workshops, offices
• Agricultural facilities with cold storage and processing equipment
• Emergency backup for 240V commercial electrical panels
• Remote industrial installations requiring 15kW split-phase power

Explore the complete large-output inverter charger range in our Inverters, Solar Kits and Off-Grid Power Systems categories.

FAQ

What is a power inverter pure sine wave at 15kW? A power inverter pure sine wave at 15kW converts 48V DC battery power to 15,000 watts of split-phase 120/240V AC electricity with a smooth sinusoidal waveform identical to utility grid power. This model includes a 100-amp battery charger, auto generator start, battery temperature sensor and remote control — providing complete off-grid power management for large residential and light commercial applications.

What is the pure sinusoidal inverter advantage at 15kW versus 12kW? The pure sinusoidal inverter at 15kW provides 3,000W additional continuous headroom over the 12kW specification — allowing properties with higher peak simultaneous load profiles to operate without load shedding. The 45kW surge (versus 36kW at 12kW) provides additional margin for starting larger motor loads. Choose 15kW when your realistic peak simultaneous load regularly approaches or exceeds 12,000W.

Why does this power inverter pure sine have a 100A charger breaker? The 100A charger breaker — versus the 80A on the 12kW model — reflects the higher thermal management requirements of the 15kW inverter chassis. At 100A into 48V, the charger delivers 4,800 watts — appropriate for rapidly recovering the larger battery banks typically paired with a 15kW inverter installation.

What is the 45kW surge capacity significance for light commercial use? The 45kW surge capacity for 20 seconds provides the motor-starting current required for commercial-grade HVAC systems, industrial compressors, three-phase-equivalent single-phase loads and large water pumps that residential-rated inverters cannot reliably start. For light commercial applications where motor-driven equipment represents a significant portion of the electrical load, the 300% surge specification at 15kW is the minimum appropriate rating.

What battery types does this power inverter pure sine wave support? This power inverter pure sine wave supports 8 battery voltage selections covering LiFePO4, gel, AGM, sealed lead-acid and flooded lead-acid chemistries. Selecting the correct battery type ensures the charger applies the appropriate bulk, absorption, float and equalisation voltage profile — maximising both charging efficiency and battery service life regardless of the battery chemistry in use.
